52 25 380 Removing And Installing/Replacing Left Or Right Rear Head Restraint Mount

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .
Remove rear panel on rear seat backrest. Refer to 52 25 ... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .
If necessary, remove backrest cover for rear seat. Refer to 52 24 410 REPLACING BACKREST COVER (NORMAL) FOR LEFT OR RIGHT REAR SEAT .

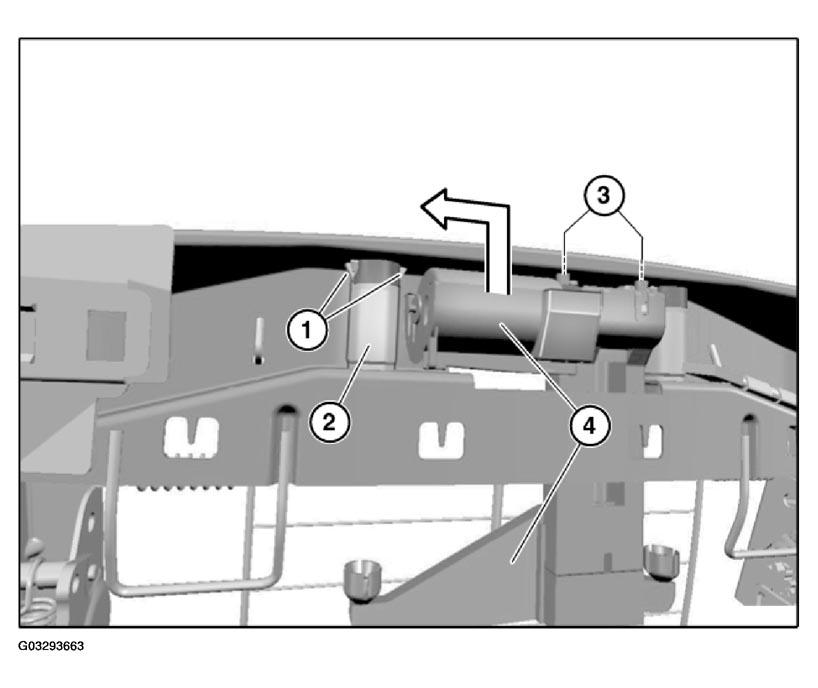

Fig 1: Rear Seat Backrest Catches, Guide, Screws, Restraint Mount And Removal Direction
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Move head restraint fully downwards (otherwise removal of head restraint guide is not possible!).

Disconnect plug connection.

Unlock catches (1) and remove guide (2) on left and right towards top.

Release screws (3).

Tilt head restraint mount (4) in direction of arrow and feed out towards top.
