52 24 410 Replacing Backrest Cover (Normal) For Left Or Right Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS .

Special Tools Required:

52 0 050

Necessary Preliminary Tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
Remove rear seat backrest. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .
Remove rear head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .

Unhook backrest cover in areas (1).

Detach retainers in areas (2).

Remove remnants of retainers from backrest cover and/or backrest frame.

Installation:

Bend new retainers closed with pliers 52 0 050.

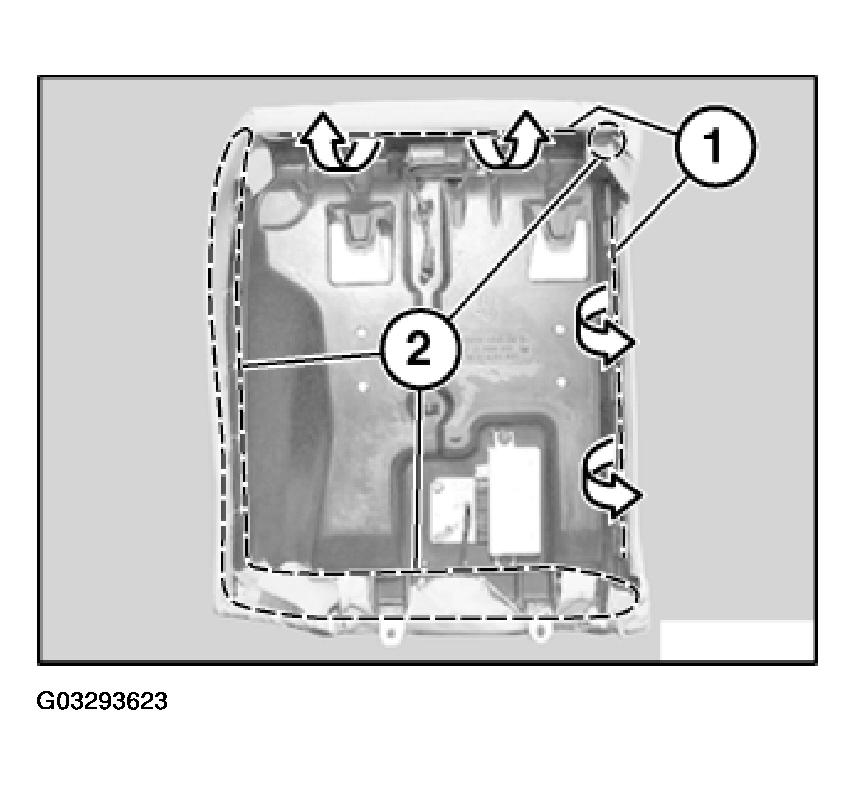

Fig 1: Retainers Areas, Backrest Cover Areas And Removal Directions

G03293623

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1) on rear side of backrest on left and right.

Remove head restraint guides (2) towards top.

Remove backrest cover (3).

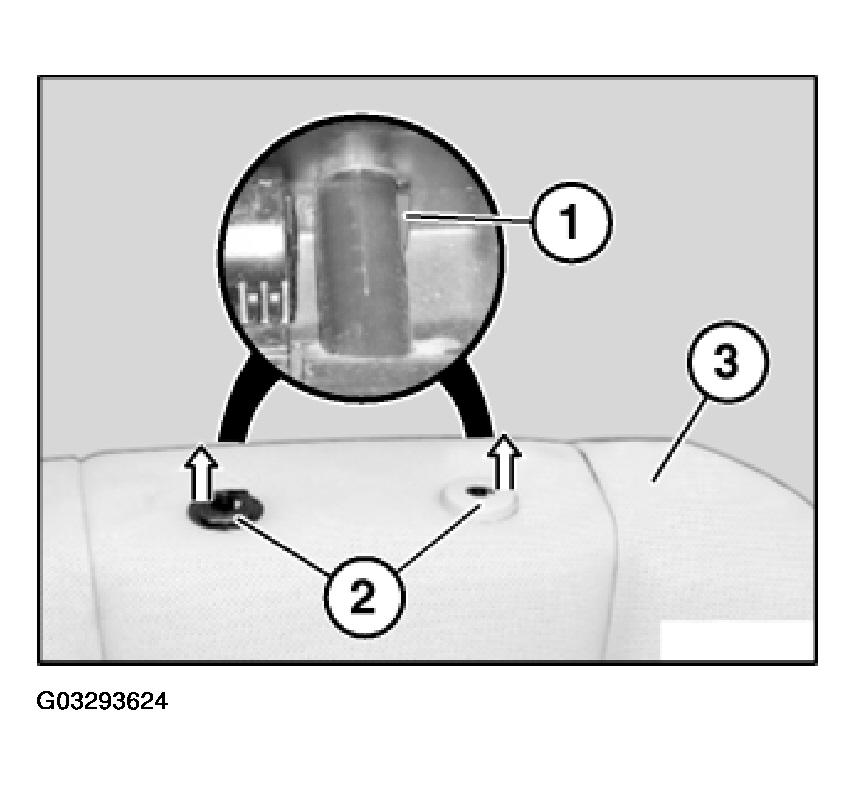

Fig 2: Rear Side Backrest Catch, Backrest Cover, Head Restraint Guides And Removal Direction

G03293624

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers in area (1).

Remove backrest cover from padding.

Remove remnants of retainers from backrest cover and/or padding.

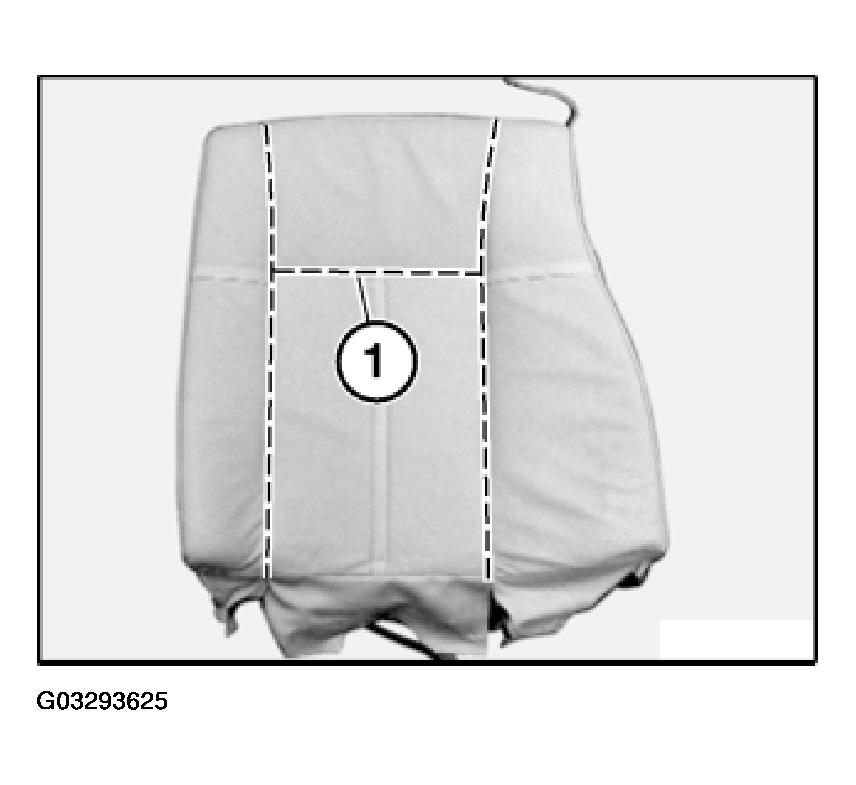

Fig 3: Backrest Cover Retainer Areas

G03293625

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainer (2) closed with pliers 52 0 050.

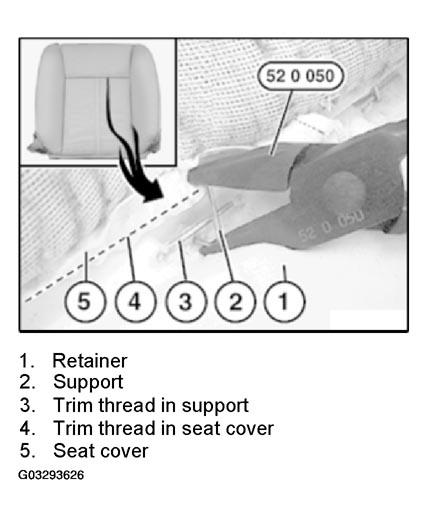

Fig 4: Closing Retainer Using Pliers

G03293626

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim threads (1) out of seat cover.

Installation:

Slide trim threads (1) into new seat cover. If necessary, cut mounting for trim threads.

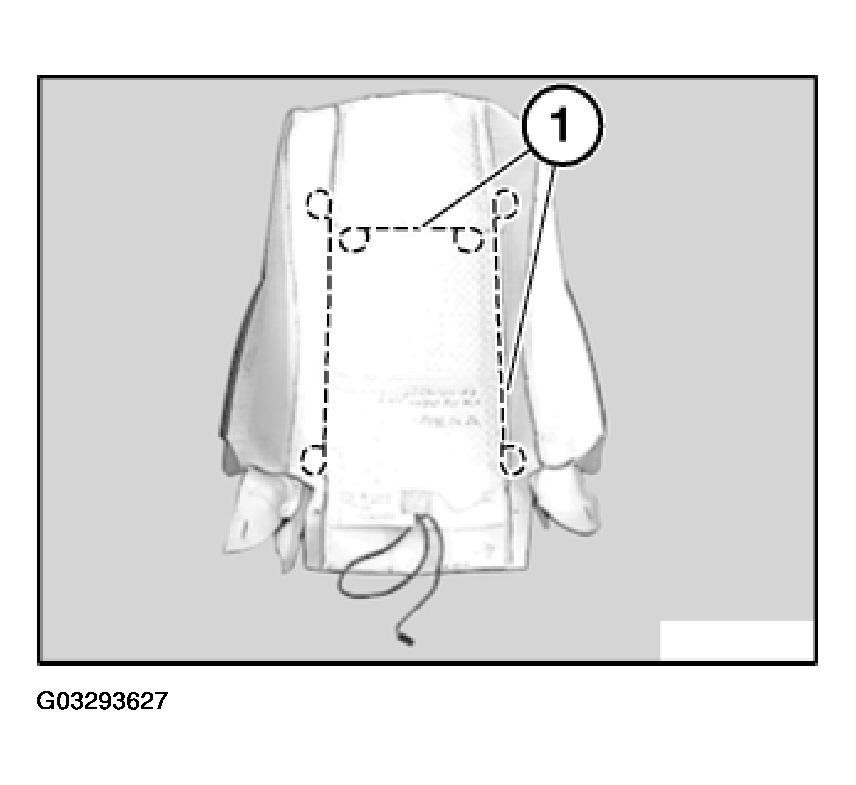

Fig 5: Seat Cover Trim Threads

G03293627

Courtesy of BMW OF NORTH AMERICA, INC.
