52 25 ... Removing And Installing/Replacing Rear Panel On Rear Seat Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Release retainers (1) on left and right.

Detach rear panel (3) towards bottom from guide (2) and remove.

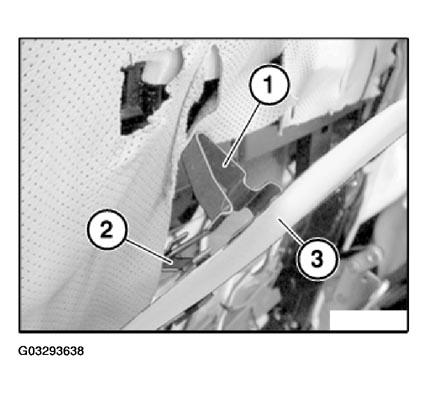

Fig 1: Retainers, Guide And Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.
