52 25 018 Removing And Installing/Replacing Four-Bar Lever On Left Or Right Rear Seat Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

Remove cover (1) upwards out of guide (2).

Detach cover (1) from Velcro-type fastener (5), pull out of guide (4) and lift out completely.

Release nuts (3).

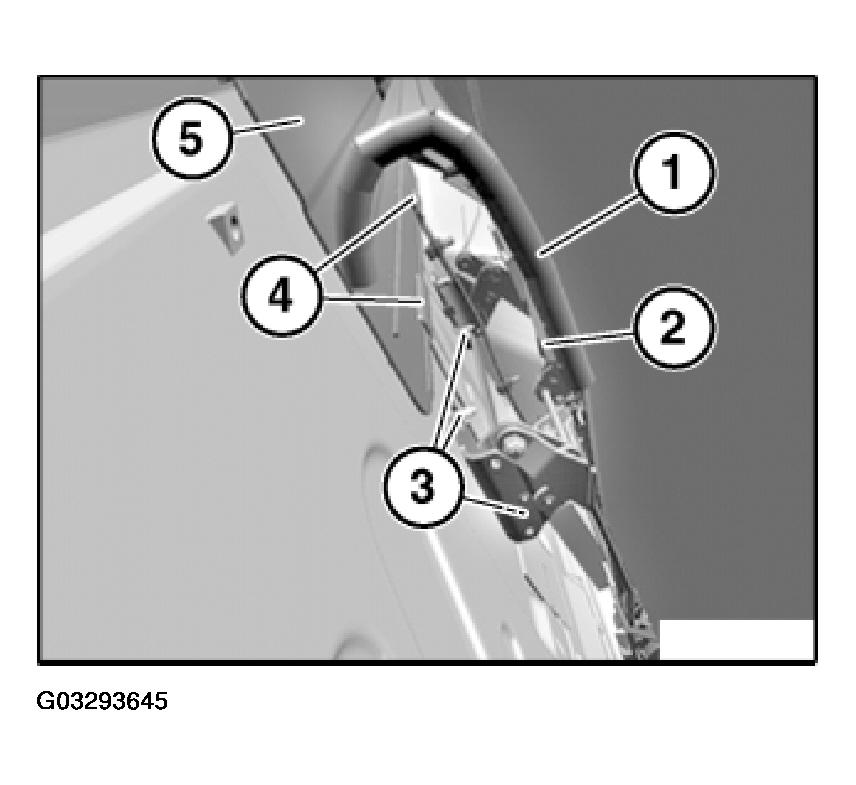

Fig 1: Removing Cover From Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert nuts (3) with Loctite.

Tightening torque, refer to 52 25 1AZ in SEATS - TIGHTENING TORQUES .

NOTE: Backrest is secured with three nuts to body (nut at top/outside is not fitted as standard).

Release screws (1) and remove four-bar lever (2).

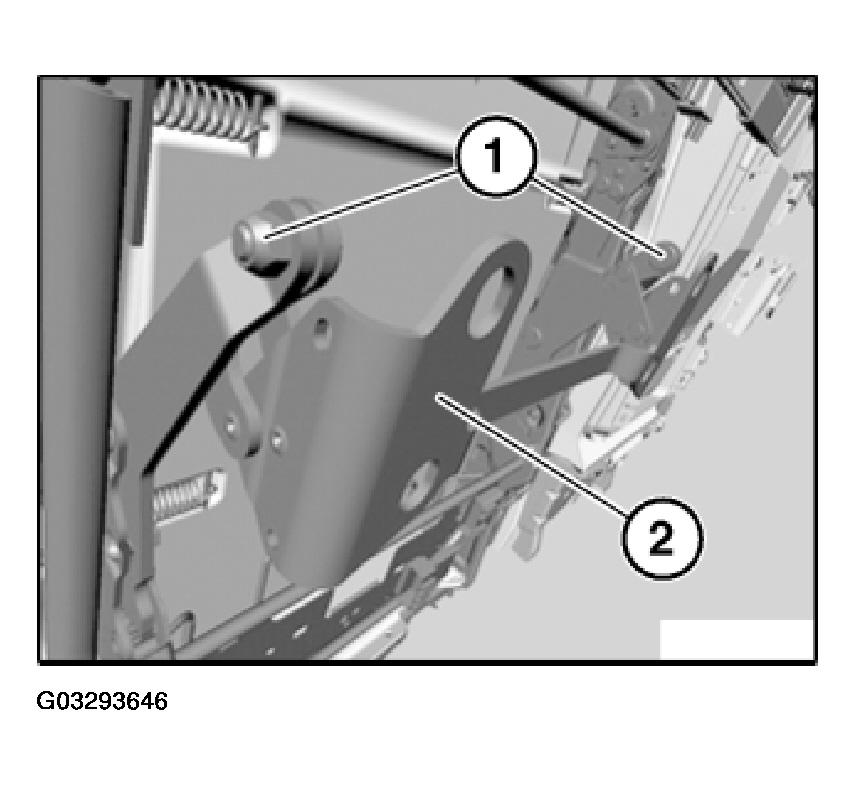

Fig 2: Screws And Four-Bar Lever

Courtesy of BMW OF NORTH AMERICA, INC.
