61 71 061 Replacing fluid tank for windscreen washer system
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- If necessary, remove front left wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove windscreen washer pump, refer to 61 71 100 REMOVING AND INSTALLING/REPLACING WINDSCREEN WASHER PUMP .
- If necessary, remove washer pump for headlight cleaning system, refer to 61 67 010 REMOVING AND INSTALLING/REPLACING WASHER PUMP OF HEADLIGHT CLEANING SYSTEM .
- Remove level switch, refer to 61 31 492 REPLACING LEVEL SWITCH FOR WINDSCREEN WASHER SYSTEM .

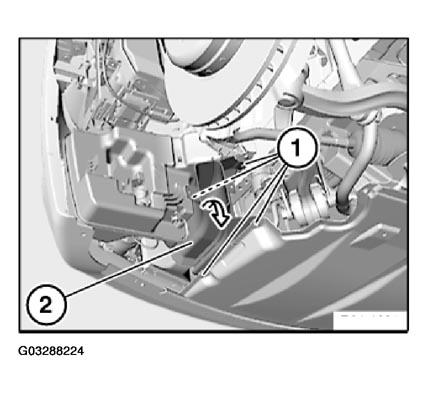

Release screws (1).
Feed out air duct (2).

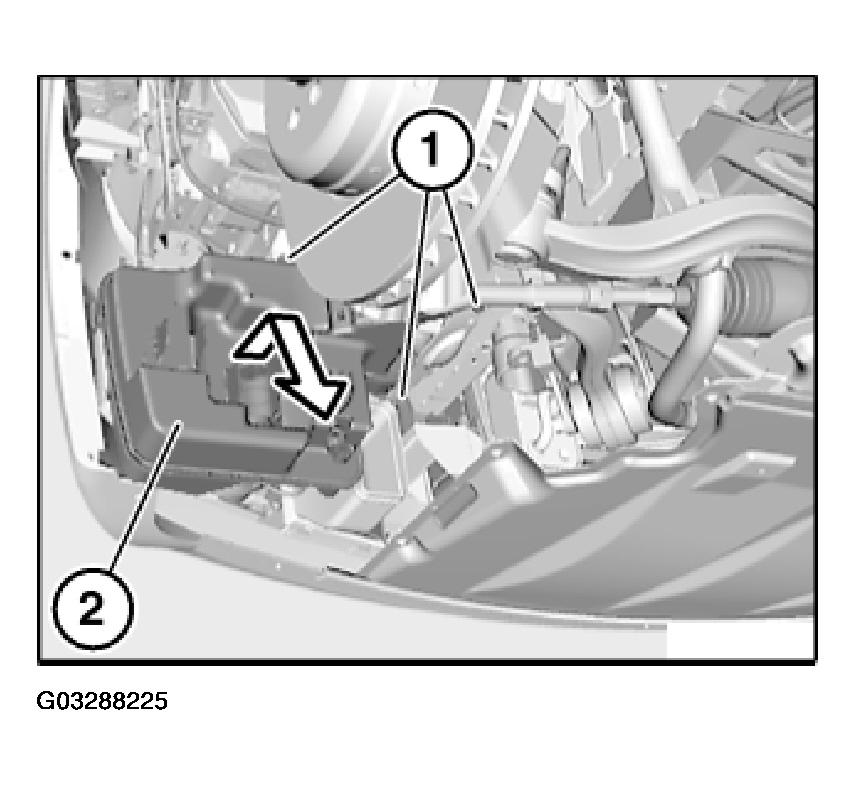

Release screws (1).
Feed out fluid tank for windscreen washer system (2) slightly in direction of arrow.
Detach associated filler hose from fitting on fluid tank.
Installation:
- Replace sealing rings and strainers of washer pumps.
- Coat sealing rings of washer pumps with antiseize agent.
- Lay lines of washer pumps without kinks and clip into holders on fluid tank.
