61 71 100 Removing and installing/replacing windscreen washer pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

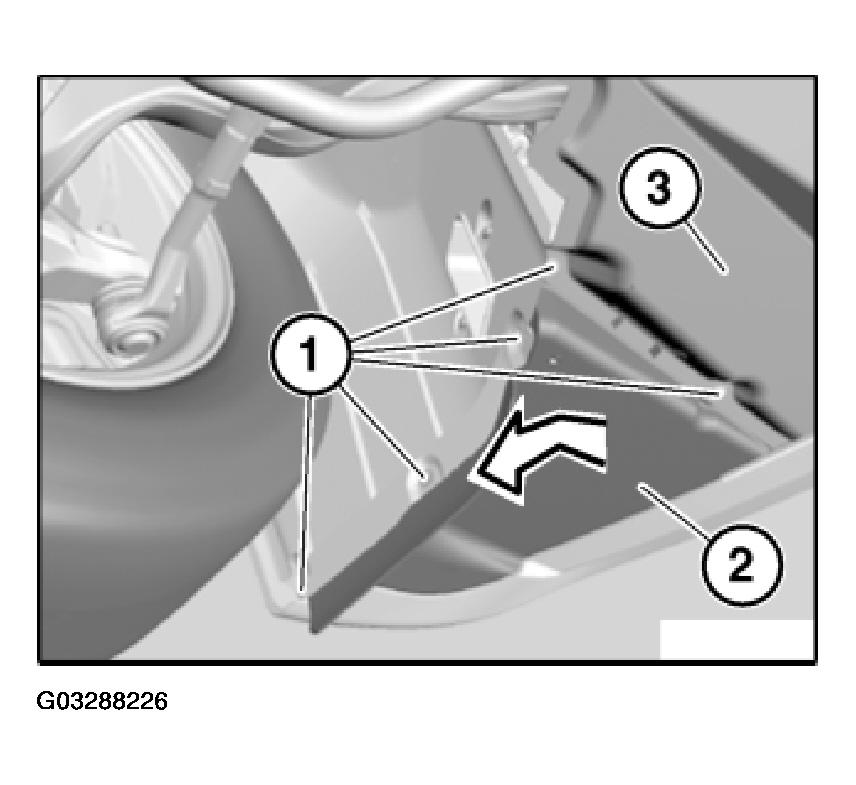

Fig 1: Detaching Cover From Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

NOTE: For purposes of clarity, illustration shows front wheel removed.

Unfasten screws.

Fold back wheel arch trim (1) slightly in direction of arrow.

Fig 2: Folding Back Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Catch any escaping washer fluid if necessary.

Disconnect plug connection (1).

Detach hose (2) from windscreen washer pump (3).

Pull windscreen washer pump (3) up and out of fluid reservoir for windscreen washer system (4).

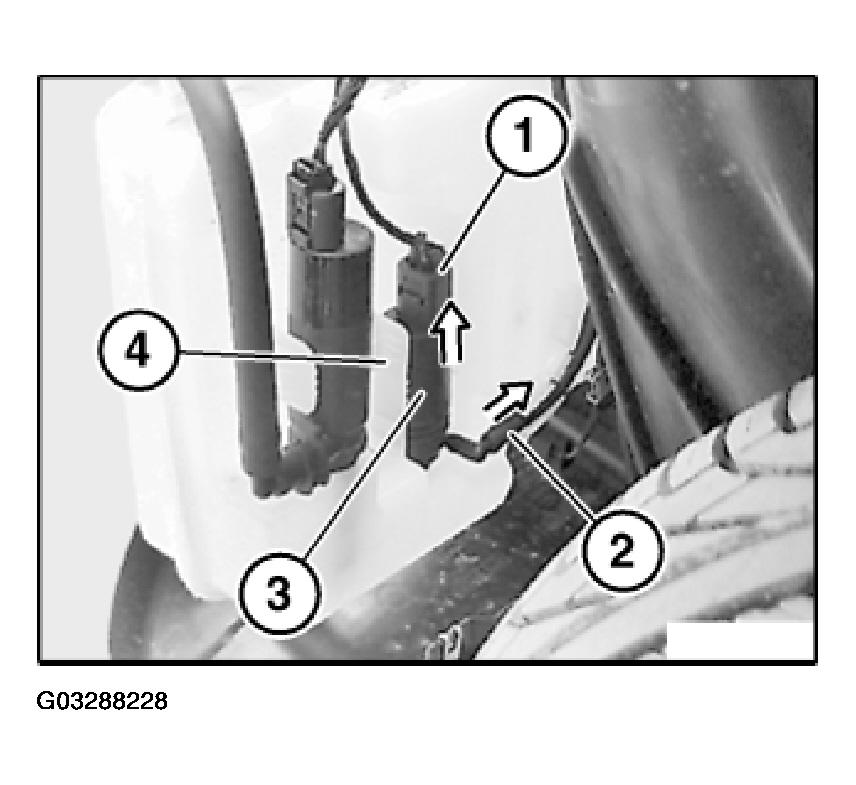

Fig 3: Disconnecting Plug Connection And Detaching Hose From Windscreen Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace strainer for windscreen washer pump.
If necessary, coat sealing ring of windscreen washer pumps with antiseize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windscreen washer system.
