36 10 300 Removing or installing front or rear wheel

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to WHEEL & TIRES - SPECIAL TOOLS - 645CI (E63) .

36 1 120
36 1 250
36 1 300

IMPORTANT: Wheel was balanced electronically.

Observe safety instructions on raising the vehicle, refer to 00 .. ... LIFTING VEHICLE WITH A LIFTING PLATFORM .

Follow instructions on initializing Run Flat Indicator (RPA), refer to 36 11 000 INITIALIZING TYRE DEFECT INDICATOR (RPA) .

Observe the following procedure to prevent shift errors and imbalance:

Loosen wheel bolts.
Wheel positioned with valve facing down.

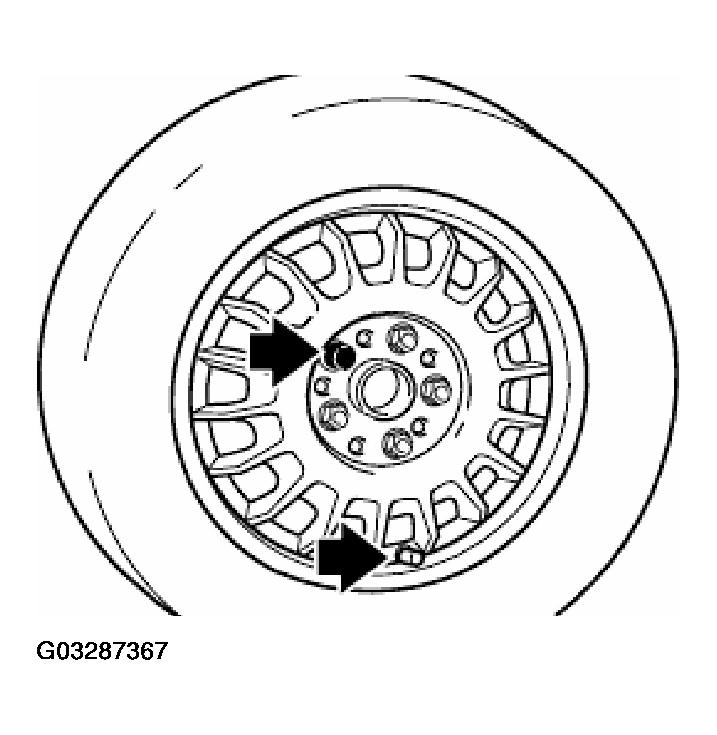

If several wheels are removed simultaneously, mark the installation locations of the wheels on the tires (e.g. with chalk).
Mark out wheel to wheel hub.
Mark out lockable wheel bolt in relation to wheel.
Release wheel bolts, remove wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

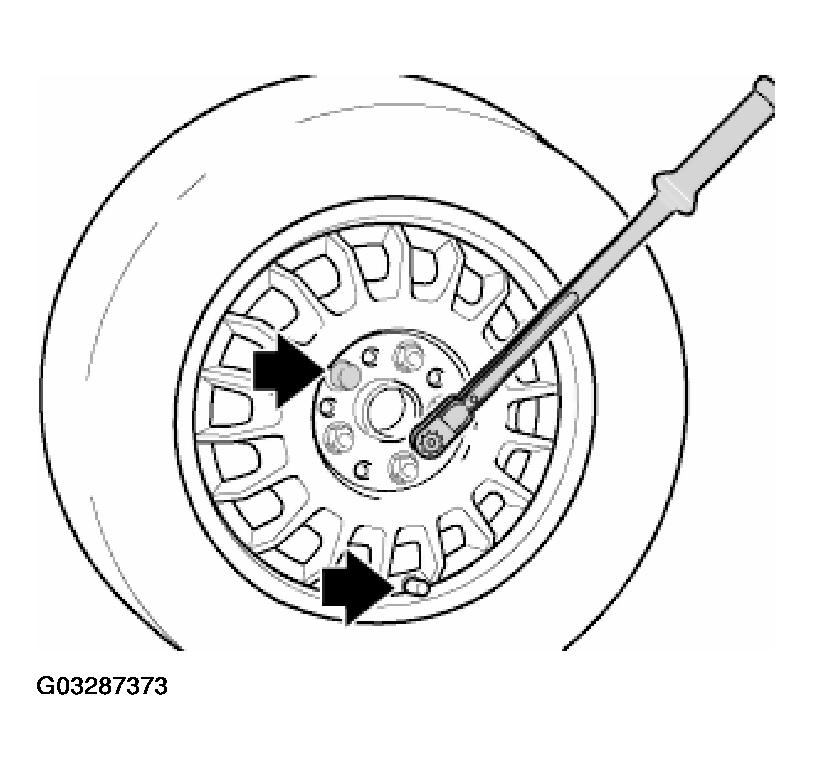

Fig 1: Removing Wheel Bolts And Wheel
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Contact surfaces between:

brake disk and disk wheel,
brake disk and wheel hub,

must be free from grease.

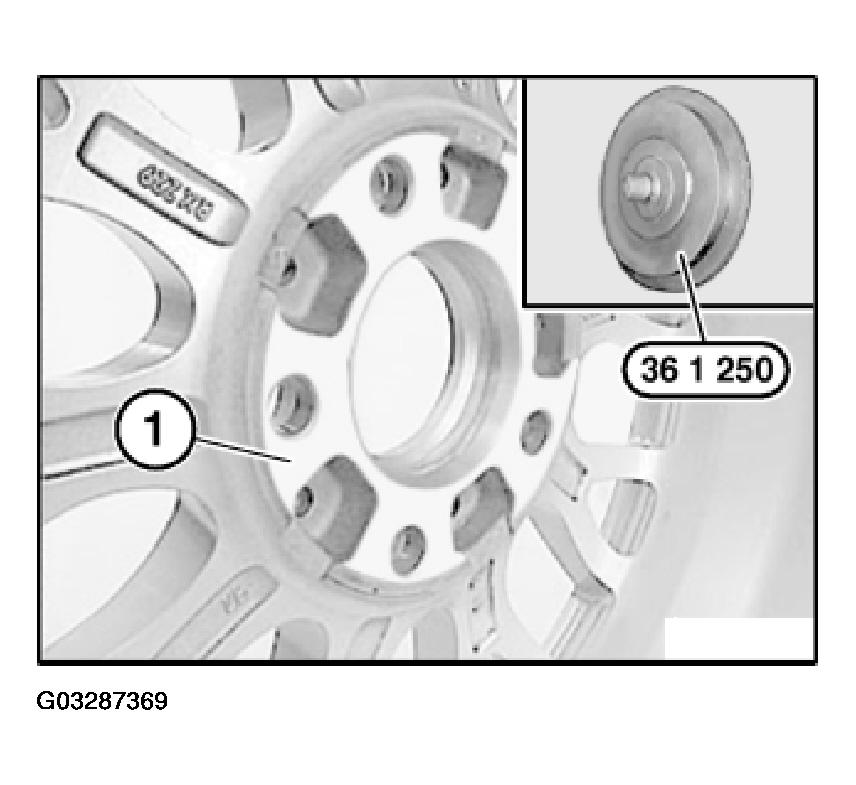

Remove dirt, grease residues and corrosion from contact face (1) with a drill and special tool 36 1 250.

IMPORTANT: Do not operate special tool 36 1 250 with an impact screwdriver!

NOTE: Degrease contact face with universal cleaner.

NOTE: If there are grease residues in the area of the wheel stud bore, the brake disk must be removed and cleaned, refer to 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISKS or 34 21 320 REMOVING AND INSTALLING OR REPLACING BOTH REAR BRAKE DISKS .

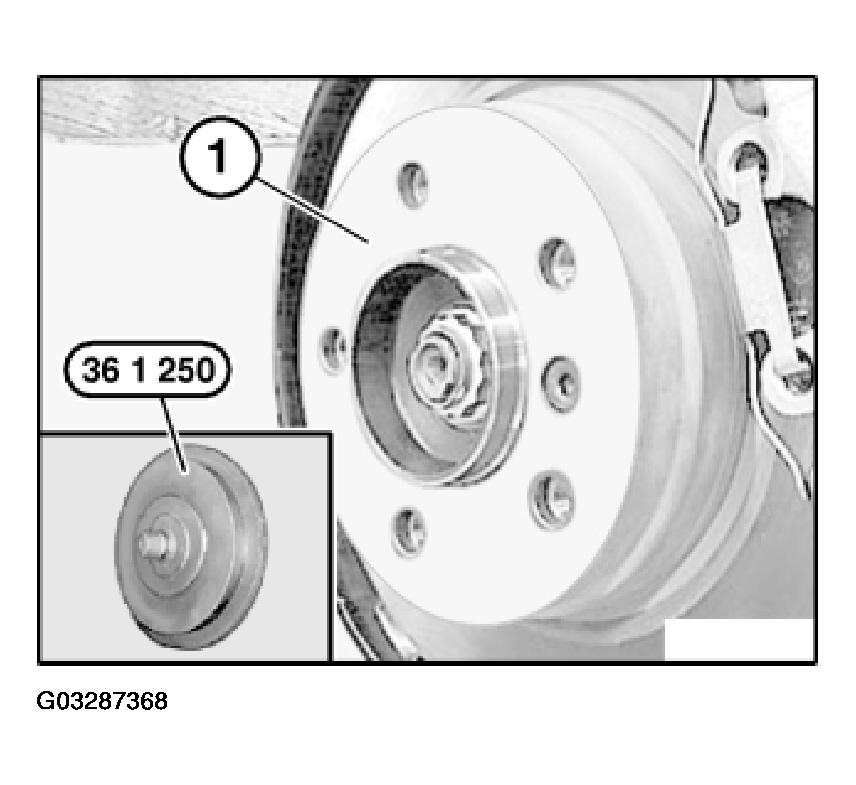

Remove dirt, grease residues and corrosion from contact face (1) with a drill and special tool 36 1 250

Fig 2: Removing Dirt, Grease Residues And Corrosion From Contact Face (1) With A Drill And Special Tool 36 1 250

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not operate special tool 36 1 250 with an impact screwdriver!

NOTE: Degrease contact face with universal cleaner.

Fig 3: Degrease Contact Face With Universal Cleaner

Courtesy of BMW OF NORTH AMERICA, INC.

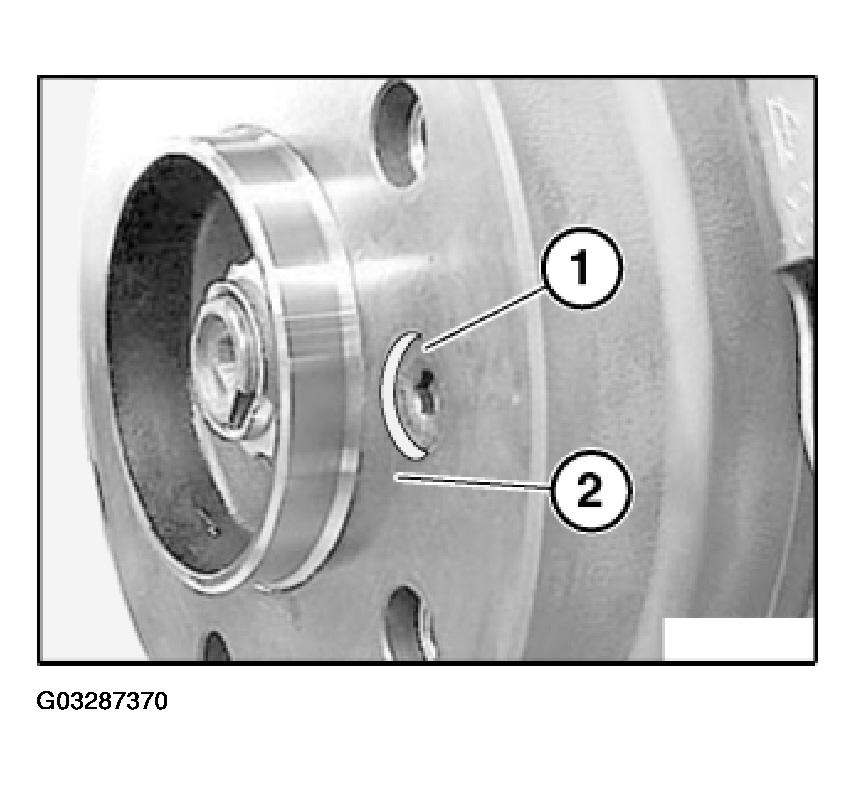

Check brake disk retaining bolt (1) for secure seating.

IMPORTANT: Mounting bolt (1) must not under any circumstances protrude over contact surface (2) between brake disk and disk wheel.

Tightening torque brake disk retaining bolt:

Front axle, refer to 34 11 1AZ in WHEEL AND TIRES - TIGHTENING TORQUES - 645CI .

Rear axle, refer to 34 21 1AZ in WHEEL AND TIRES - TIGHTENING TORQUES - 645CI .

Fig 4: Checking Brake Disk Retaining Bolt For Secure Seating

Courtesy of BMW OF NORTH AMERICA, INC.

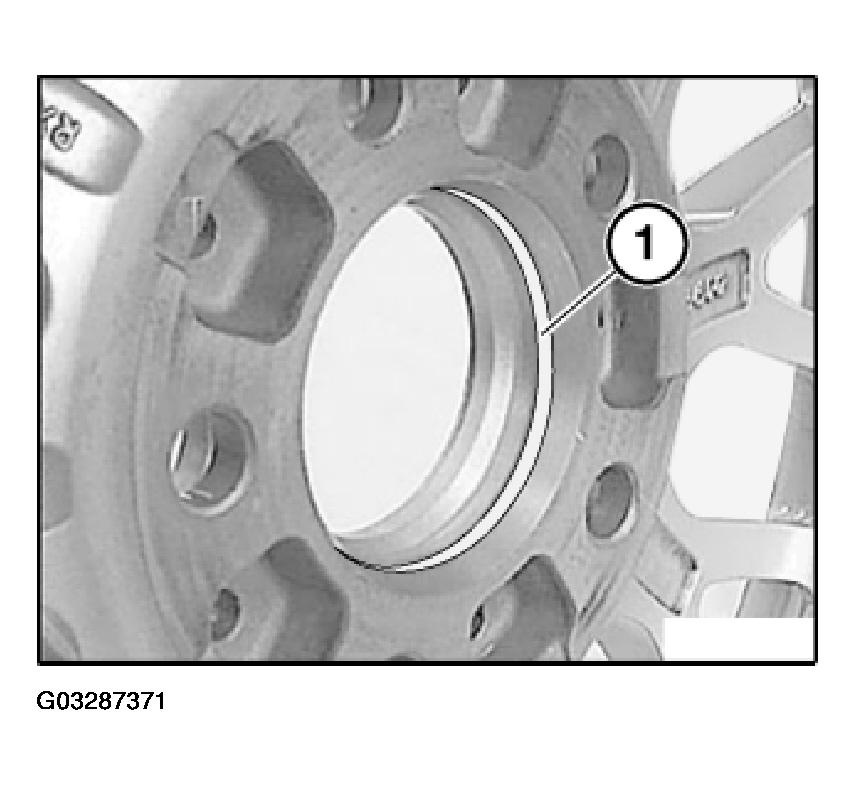

Apply a thin coat of grease to wheel centering (1) in disk wheel.

NOTE: Refer to OPERATING FLUIDS - WHEELS AND TIRES - ALL MODELS .

Fig 5: Locating Grease Applying Point

Courtesy of BMW OF NORTH AMERICA, INC.

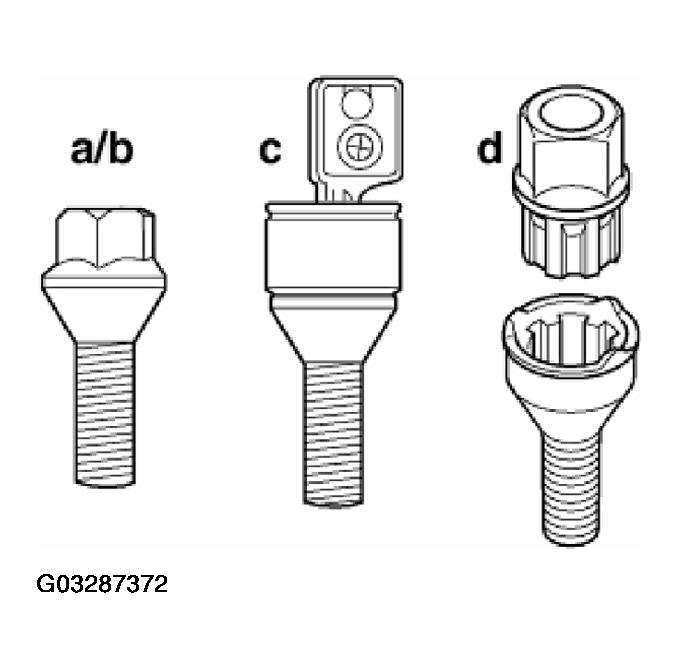

Wheel studs with taper:

Wheel bolt - galvanised
Wheel bolt - black chrome plated
Wheel bolt - black chrome plated and lockable
Lockable wheel stud with adapter, black chrome-plated

NOTE: To release and tighten down lockable wheel stud, use a matching adapter from special tool 36 1 300.

Fig 6: Identifying Wheel Studs With Taper

Courtesy of BMW OF NORTH AMERICA, INC.

Clean wheel bolts and check threads for damage, replace, if necessary.

Replace rusty wheel bolts.

IMPORTANT: Do not apply oil to new wheel bolts.

Apply a thin coating of engine oil to threads and tapers of used wheel studs before insertion.

IMPORTANT: Under no circumstances use pneumatic or power screwdrivers to install and tighten the wheel bolts.

Screw in wheel studs and, to center disk wheel, tighten down by hand diagonally and evenly.

Using torque wrench, firmly tighten wheel studs in diagonal and even sequence.

Tightening torque refer to 36 10 1AZ in WHEEL AND TIRES - TIGHTENING TORQUES - 645CI .

IMPORTANT: Disk wheel must rest uniformly against brake disk.

Fig 7: Installing Wheel Studs To Center Disk

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For wheels with Styling 90 wheel cover.

The wheel cover can be removed for cleaning and removal of foreign objects.

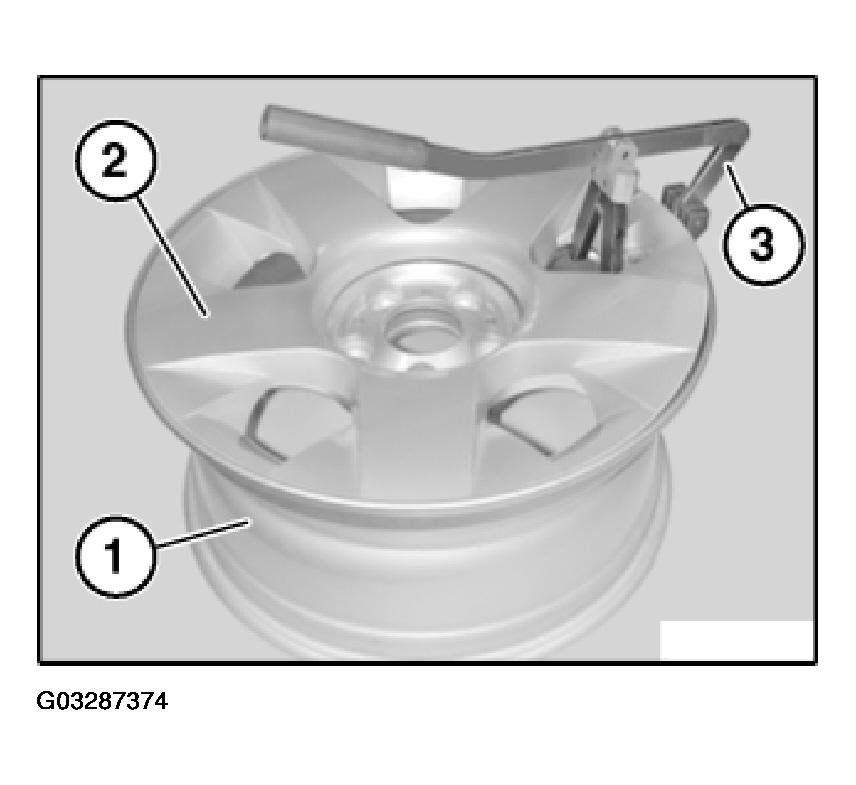

Fit special tool 36 1 120 (3) as shown on rim (1) (near valve).

Engage removal fork of special tool 36 1 120. (3) in wheel cover (2).

Pull off wheel cover (2) with handle of special tool 36 1 120 (3).

Fig 8: Installing Special Tool On Rim

Courtesy of BMW OF NORTH AMERICA, INC.
