61 31 492 Replacing level switch for windscreen washer system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

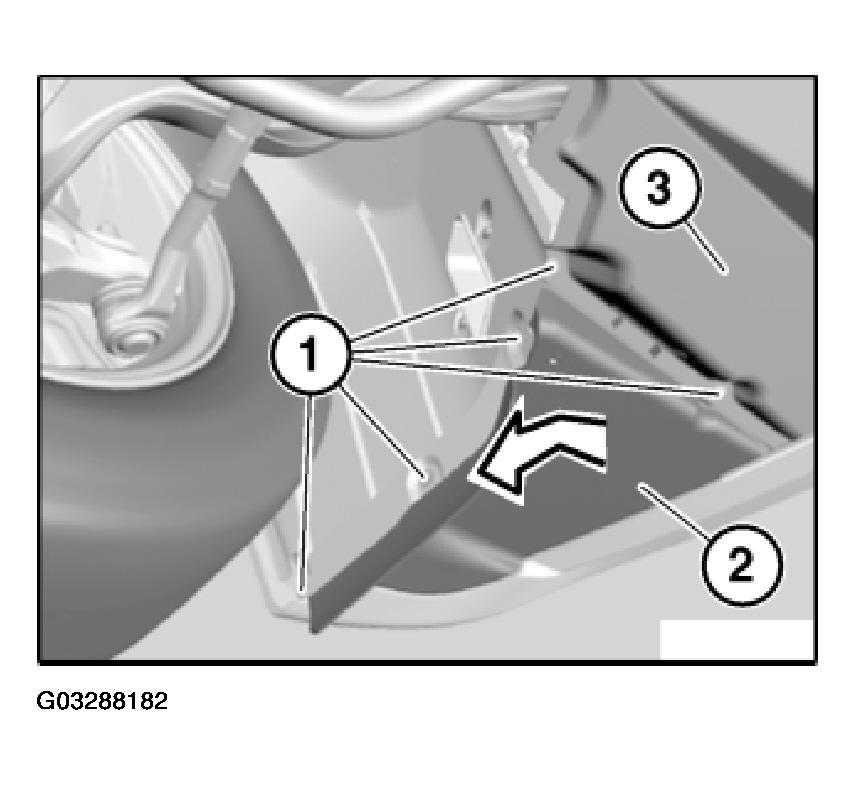

Fig 1: Detaching Cover From Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

E60, E61 with M aerodynamic kit only:

Catch any escaping washer fluid if necessary.

Unfasten plug connection (1) and disconnect.

Turn level switch for windscreen washer system (2) in direction of arrow, pull down out of fluid reservoir (3) and remove.

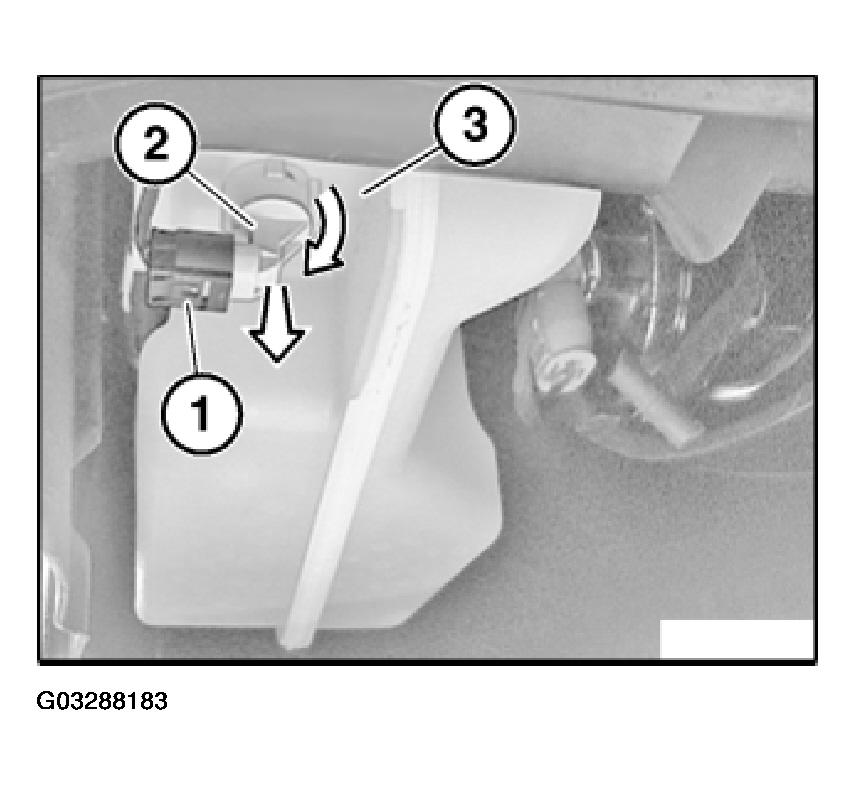

Fig 2: Turning Level Switch For Windscreen Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

All others:

Catch any escaping washer fluid if necessary.

Unfasten plug connection (1) and disconnect.

Turn level switch for windscreen washer system (2) in direction of arrow, pull down out of fluid reservoir (3) and remove.

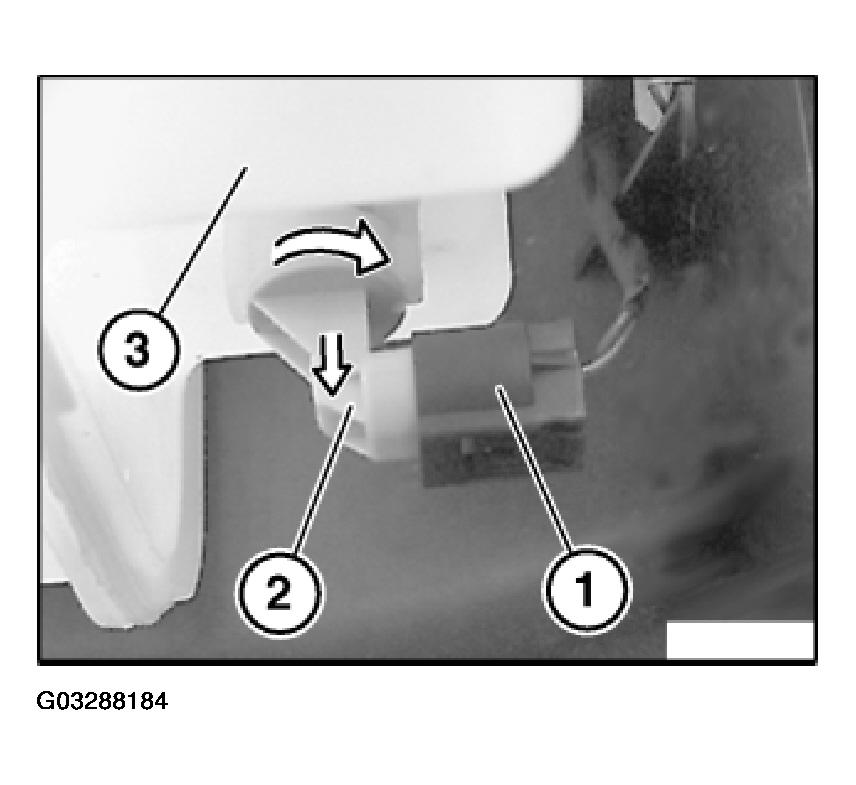

Fig 3: Turn Level Switch For Windscreen Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fill fluid tank for windscreen washer system.
