61 67 010 Removing and installing/replacing washer pump of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

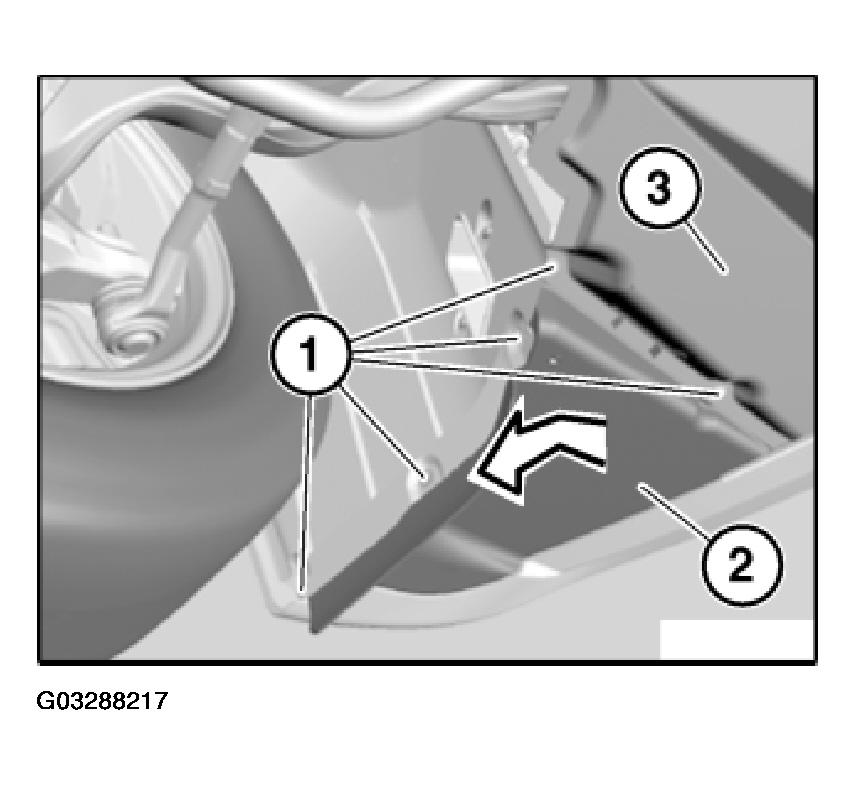

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

Fig 1: Detaching Cover From Front Underride Protection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows front wheel removed.

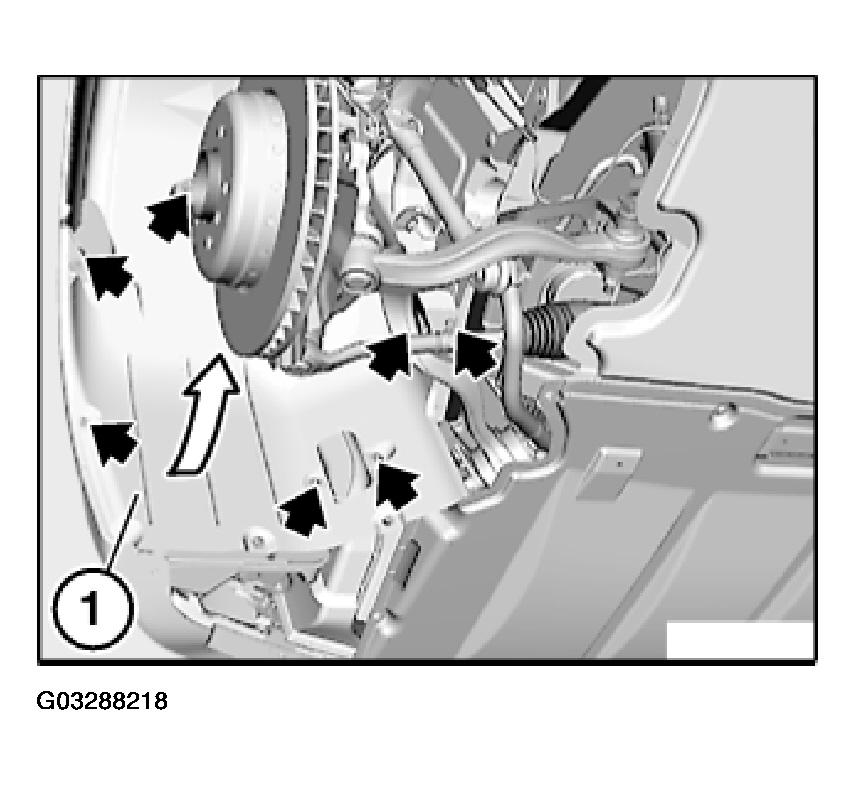

Unfasten screws.

Fold back wheel arch trim (1) slightly in direction of arrow.

Fig 2: Folding Back Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Catch any escaping washer fluid if necessary.

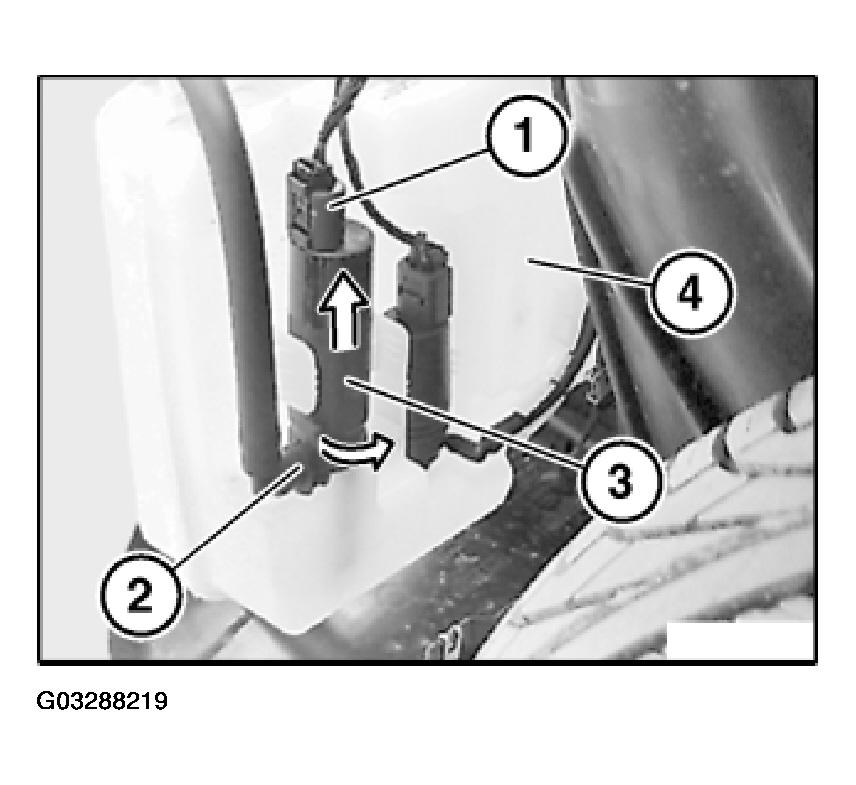

Disconnect plug connection (1).

Unlock hose (2) and detach from washer pump of headlight cleaning system (3).

Turn washer pump of headlight cleaning system (3) in direction of arrow and pull upwards out of fluid tank for windshield washer system (4).

Fig 3: Detaching Hose From Washer Pump Of Headlight Cleaning System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace strainer for washer pump of headlight cleaning system.
If necessary, coat sealing ring of washer pump for headlight cleaning system with antiseize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windscreen washer system.
