52 26 411 Replacing backrest cover for rear seat (through-loading system) on left

WARNING: This page is about a different variant/trim than selected.

Release screw on seat outer mount.

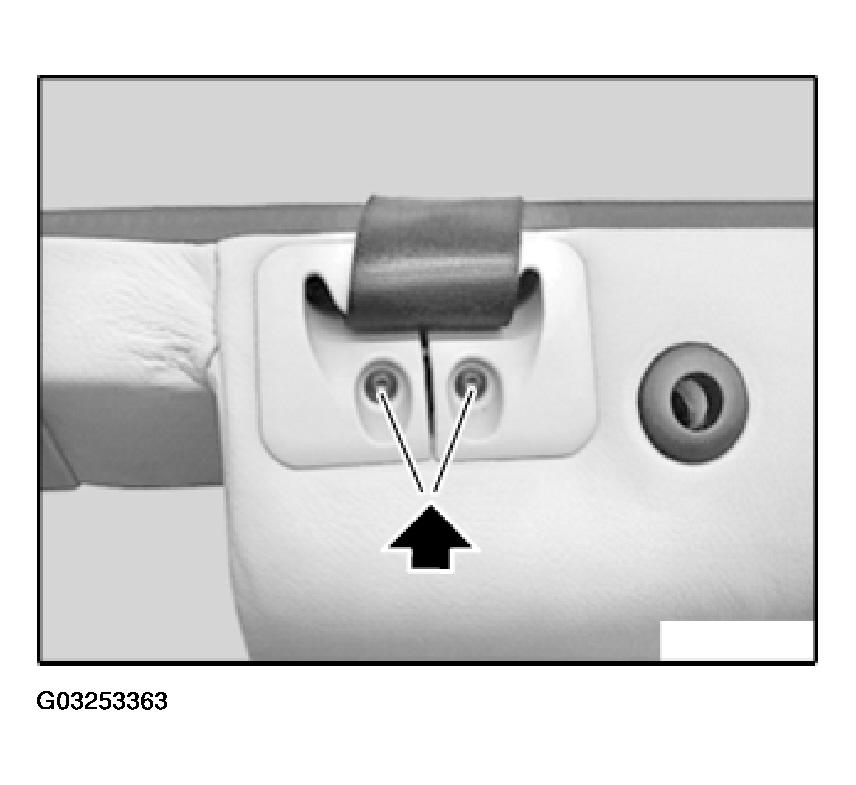

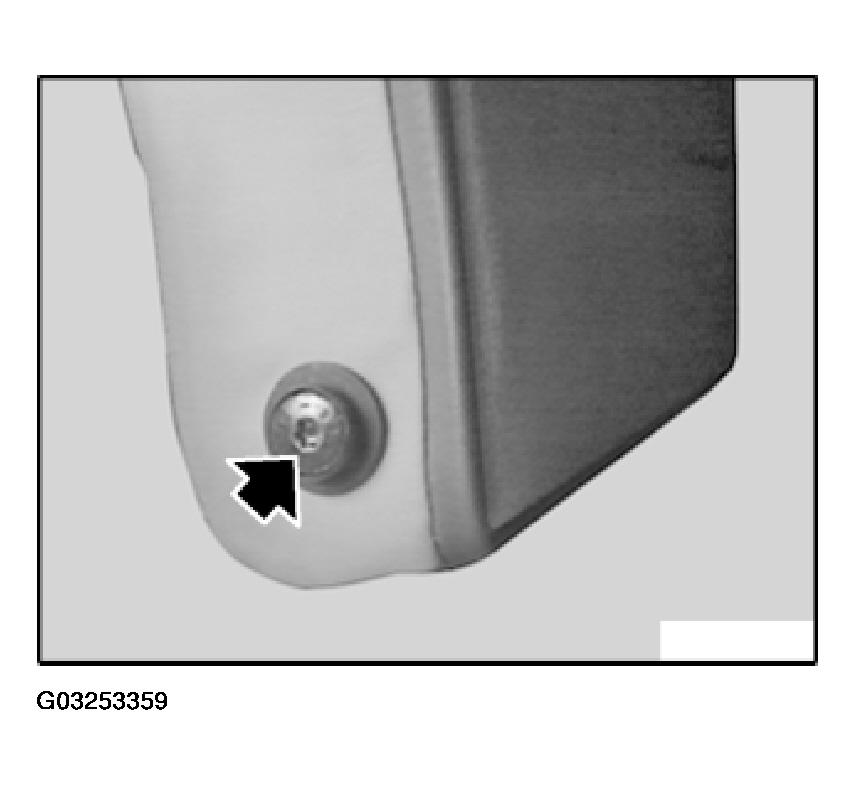

Fig 1: Locating Screw On Seat Outer Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw down screw (1), cover (2), plastic washer (3) and washer (4) as illustrated.

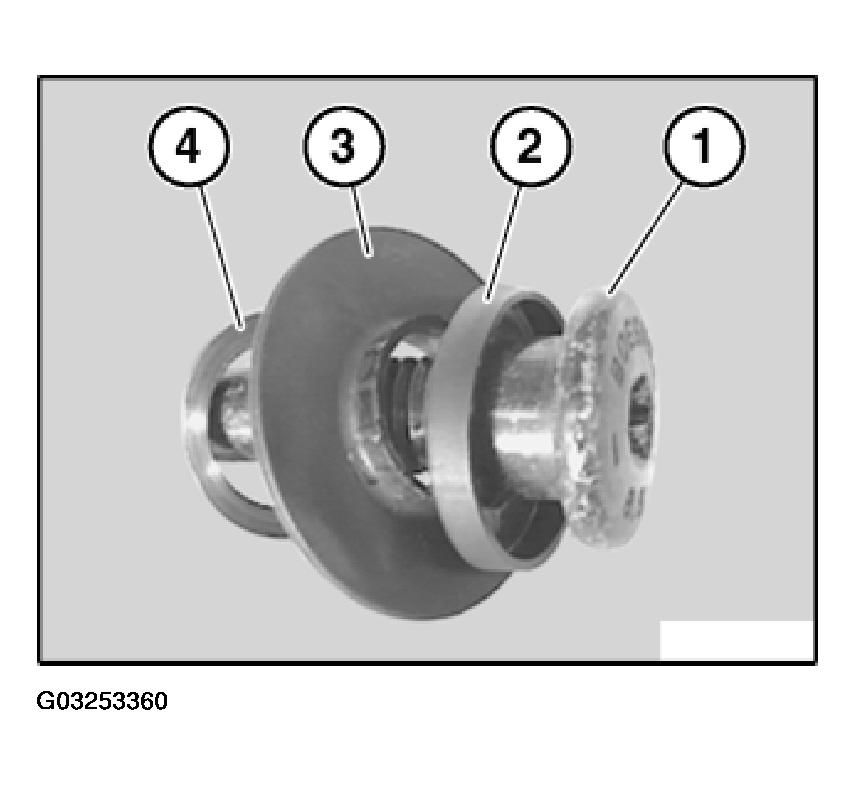

Fig 2: Identifying Screw, Cover, Plastic Washer And Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew seat center mount.

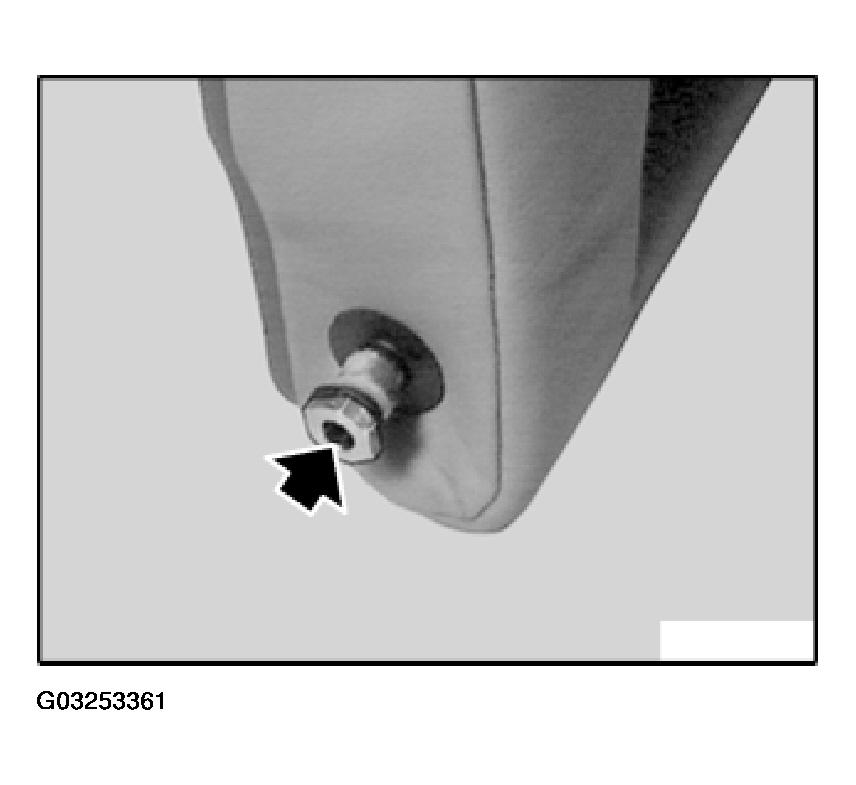

Fig 3: Locating Seat Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove cover.

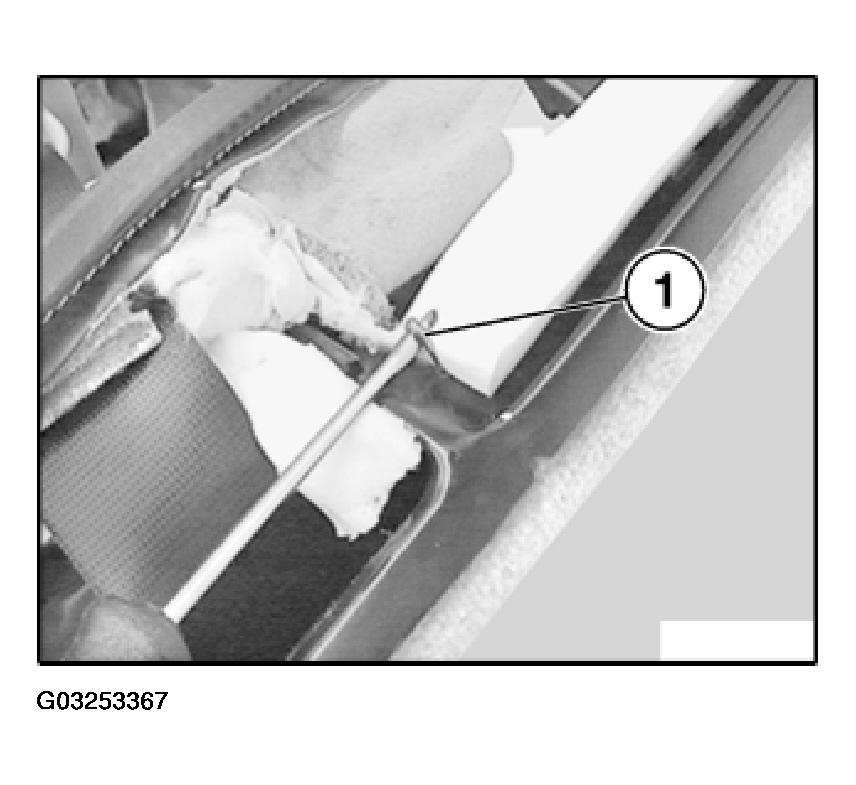

Fig 4: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

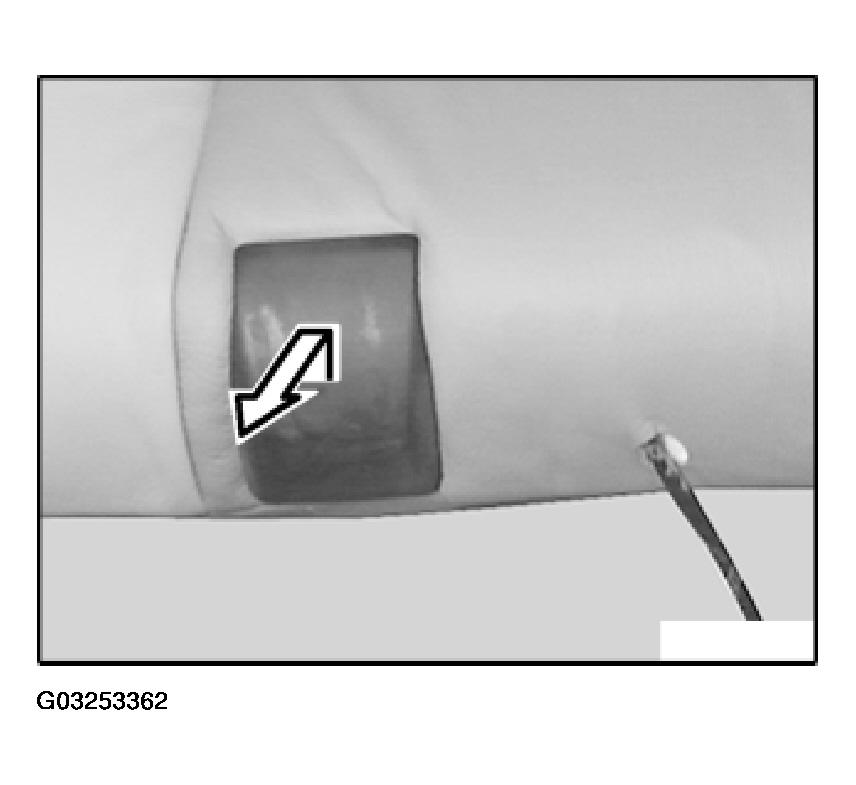

Fig 5: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim.

Separate webbing.

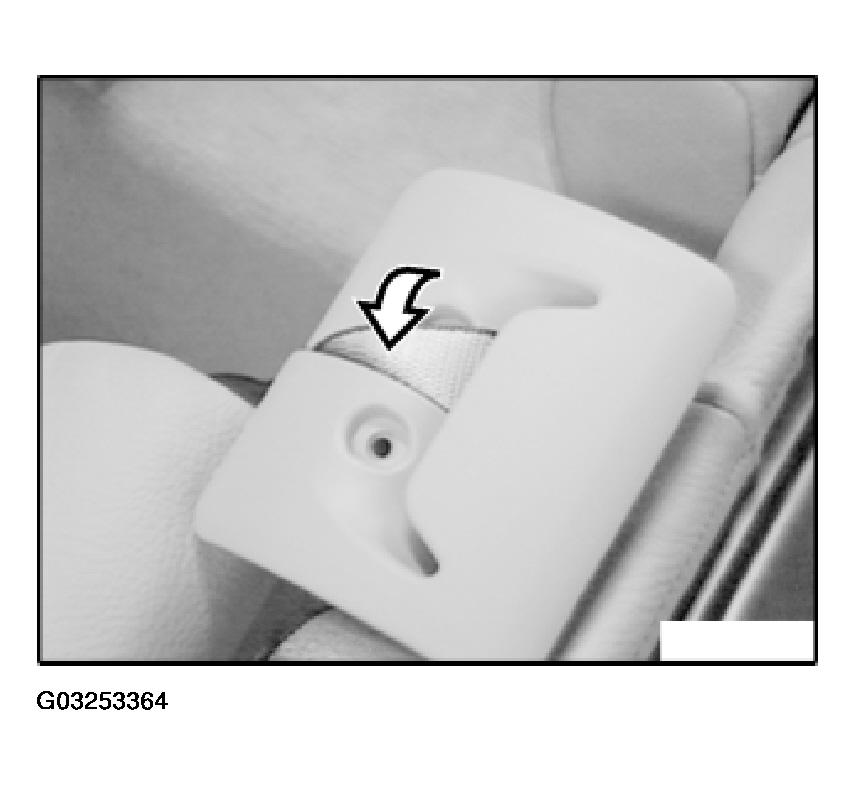

Fig 6: Separating Webbing

Courtesy of BMW OF NORTH AMERICA, INC.

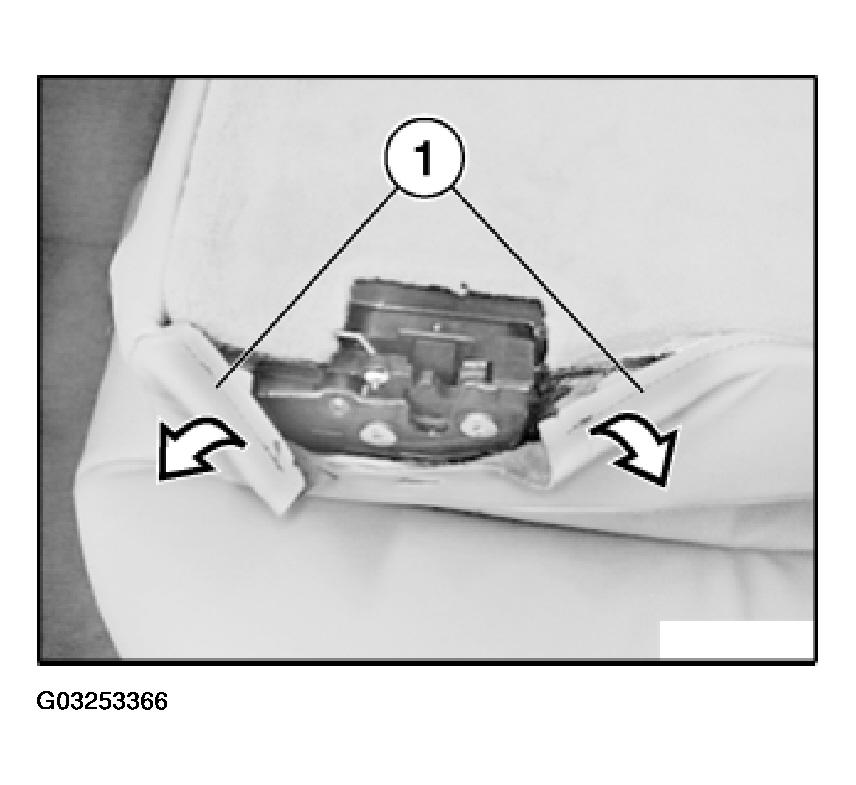

Lever cover with trim wires (1) out of metal clutches (2).

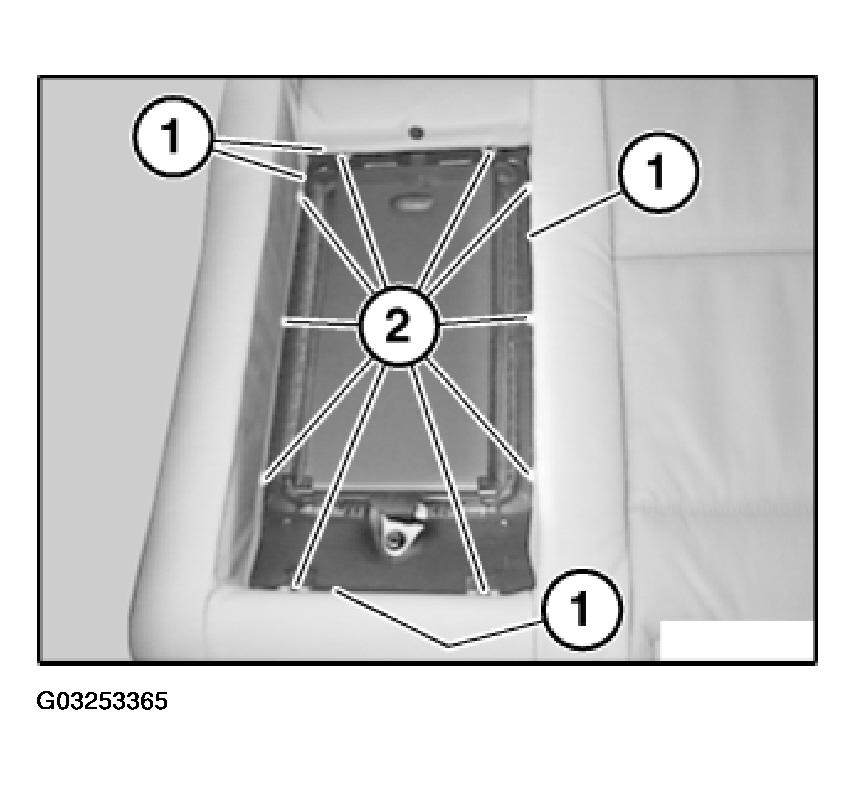

Fig 7: Identifying Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover all around by levering out piping (1).

Fig 8: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach trim wire (1) from rear panel.

Fig 9: Detaching Trim Wire From Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement, "padding":

Note clip positions.

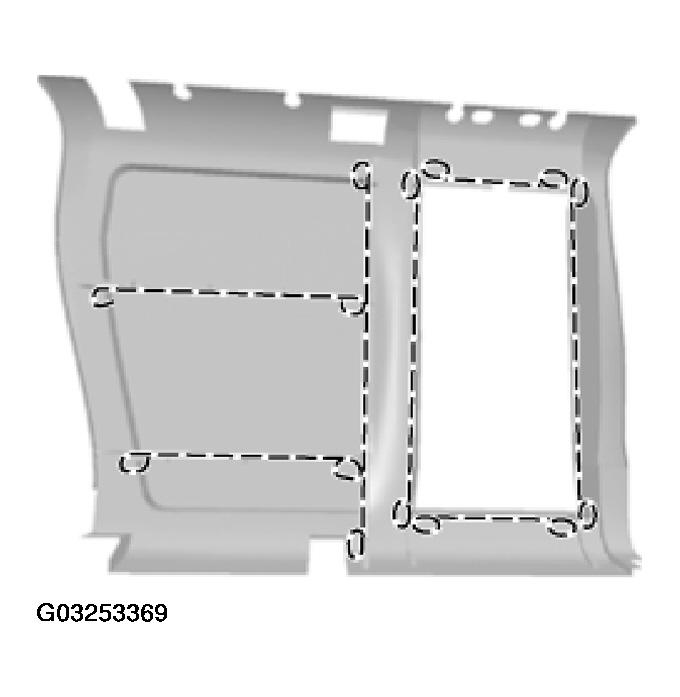

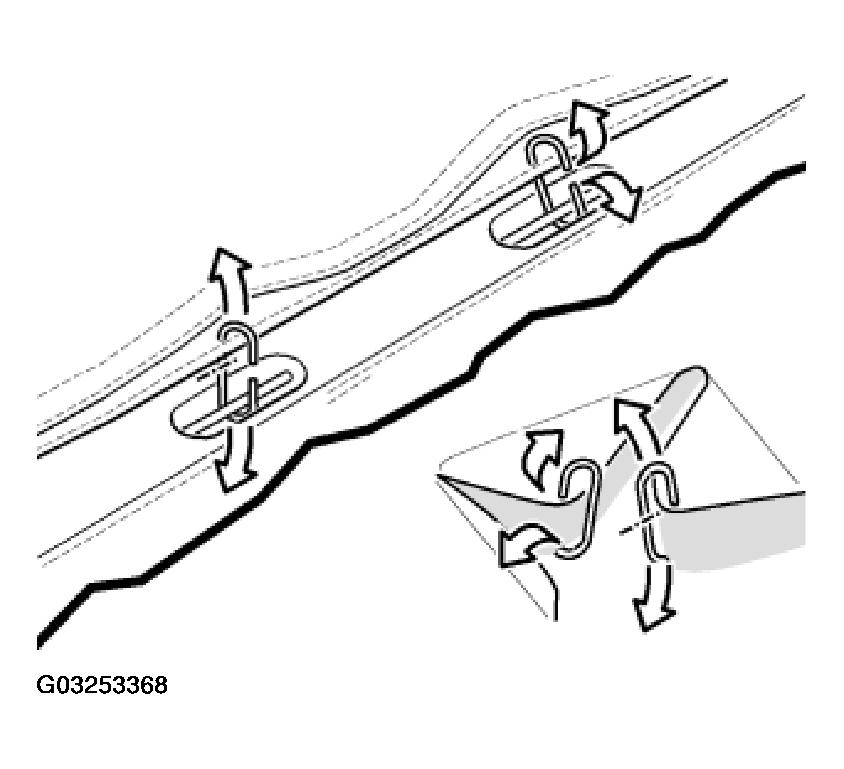

Fig 10: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through or bend open all clips, remove remnants of clips from cover and padding.

Installation:

Lock new clips by bending with special tool 52 0 050.

Replacement only, "backrest cover":

Remove all trim wires from cover.

Fig 11: Removing All Trim Wires From Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Cut new cover and insert the trim wires.
