52 26 301 Removing And Installing /Replacing Actuating Mechanism For Left Rear Seat Backrest (Through-Loading System)

WARNING: This page is about a different variant/trim than selected.

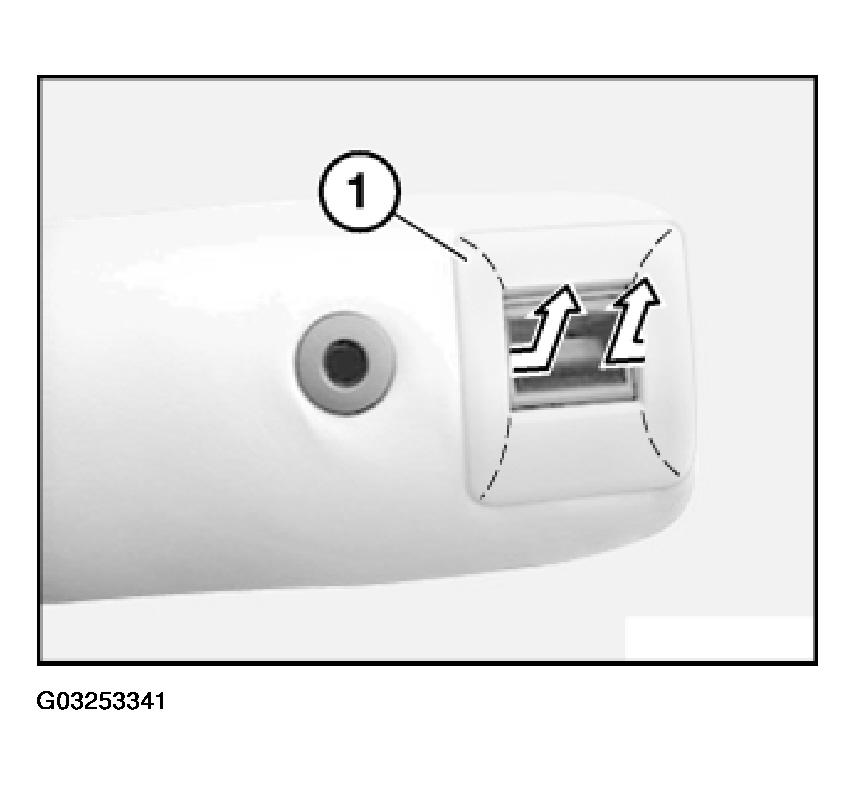

Grasp trim (1) for release lever from inside and pry out upward.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

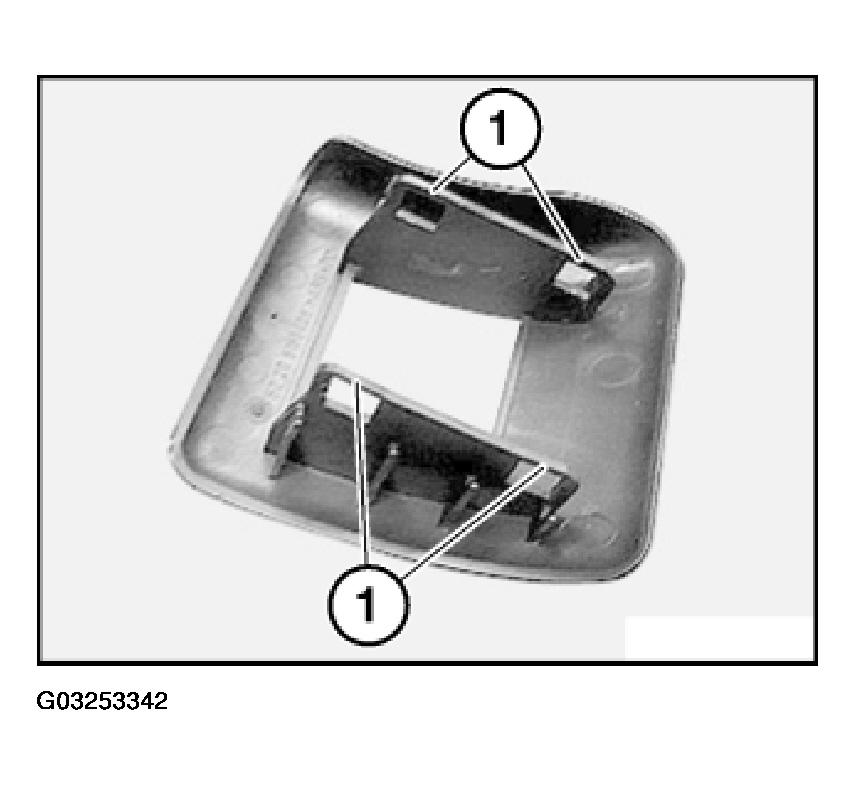

Retaining straps (1) must not be damaged.

Fig 2: Identifying Retaining Straps

Courtesy of BMW OF NORTH AMERICA, INC.

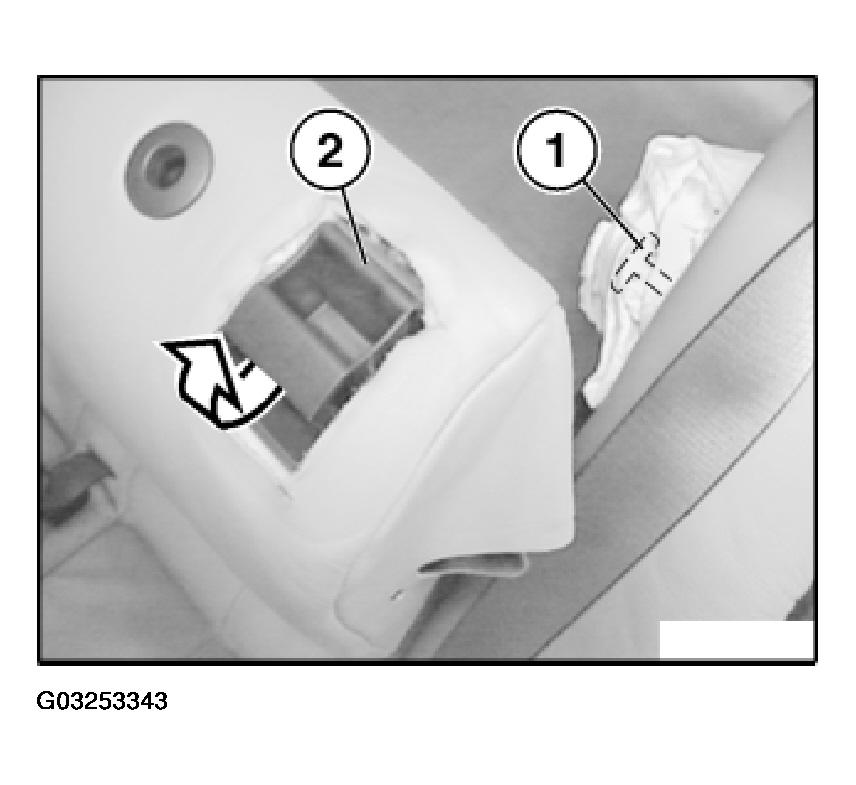

NOTE: Place cloth (1) over locking rod to prevent the rear seat backrest from locking down.

Fig 3: Prying Out Actuating Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out actuating mechanism (2) by pulling forwards and upwards.

Installation:

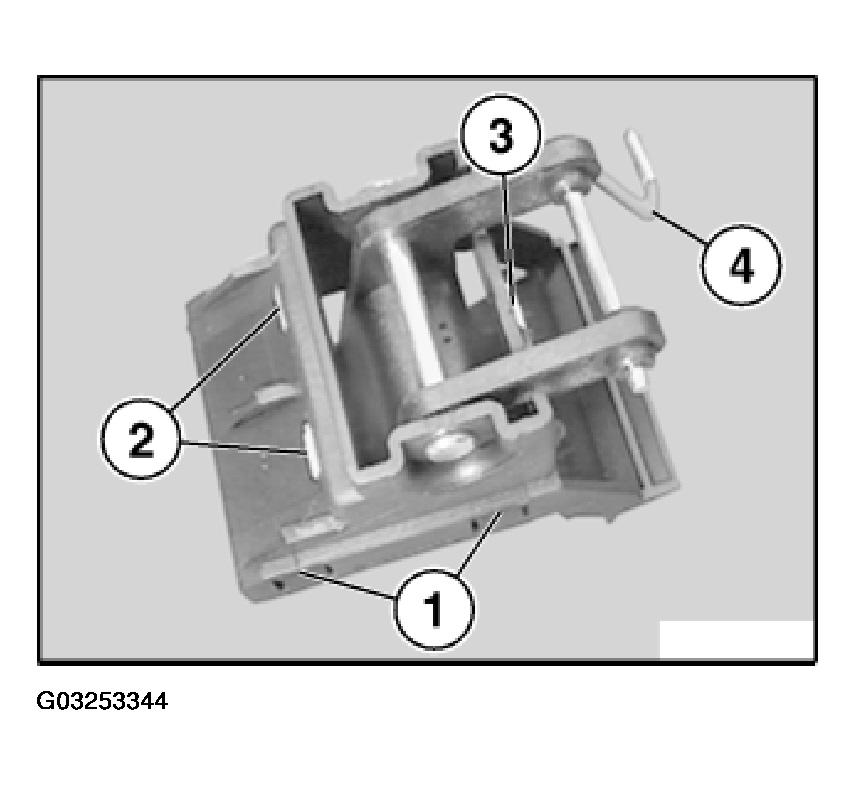

Locking tabs (1) on left/right sides (for trim on actuating mechanism) must not be damaged.

Fig 4: Identifying Locking Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Locking tabs (2) at front and (3) back (for actuating mechanism) must not be damaged.

Actuating rod (4) must be correctly mounted and should not be bent.
