52 26 015 Removing And Installing / Replacing Left Or Right Backrest For Rear Seat (Load Through System) (Touring)

WARNING: This page is about a different variant/trim than selected.

Removing and installing armrest side section on left or right rear-seat backrest (load through system), refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT SIDE SECTION OF REAR SEAT BACKREST (THROUGH-LOADING)

Unfasten screw (1) and remove center mount (2).

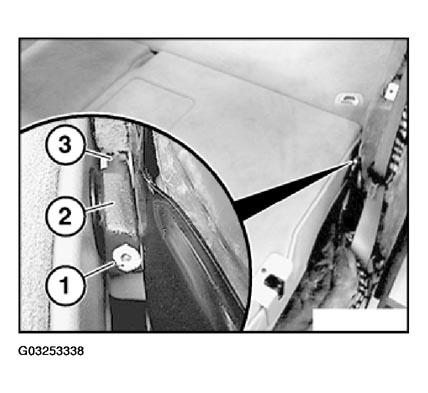

Fig 1: Removing Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install center mount (2) properly in guide (3).

Unfasten bolt and (1) take off outer mount (2).

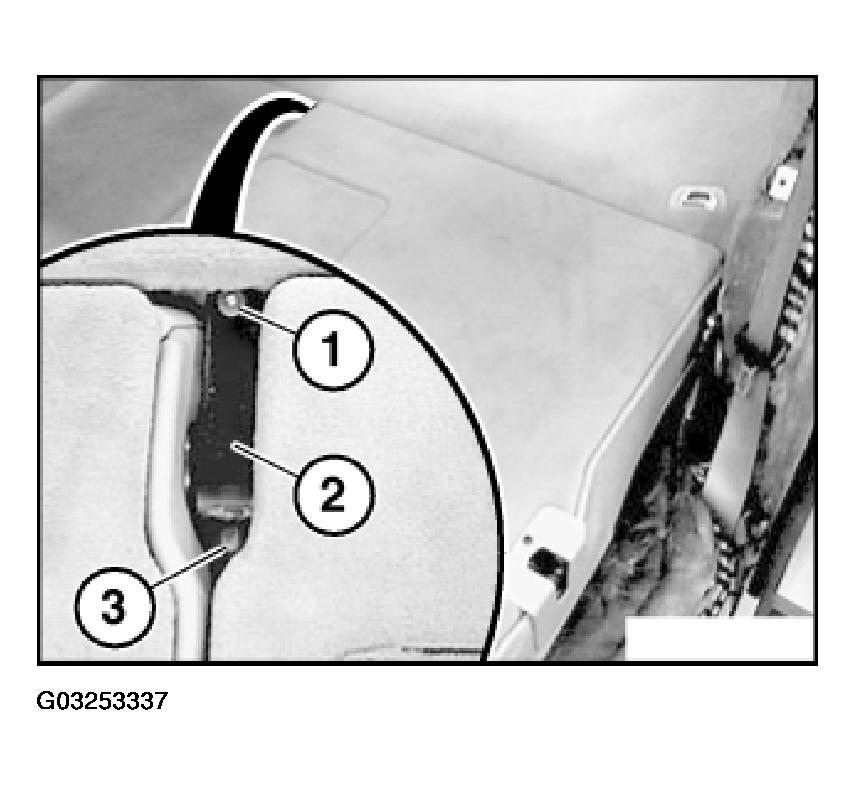

Fig 2: Taking Off Outer Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install outer mount (2) properly in guide (3).

Left backrest:

Position backrest vertically (do not engage) and pull out upward.

Right backrest:

Pull out backrest upward.

Left backrest only:

Installation:

Rod (1) must be facing downward.

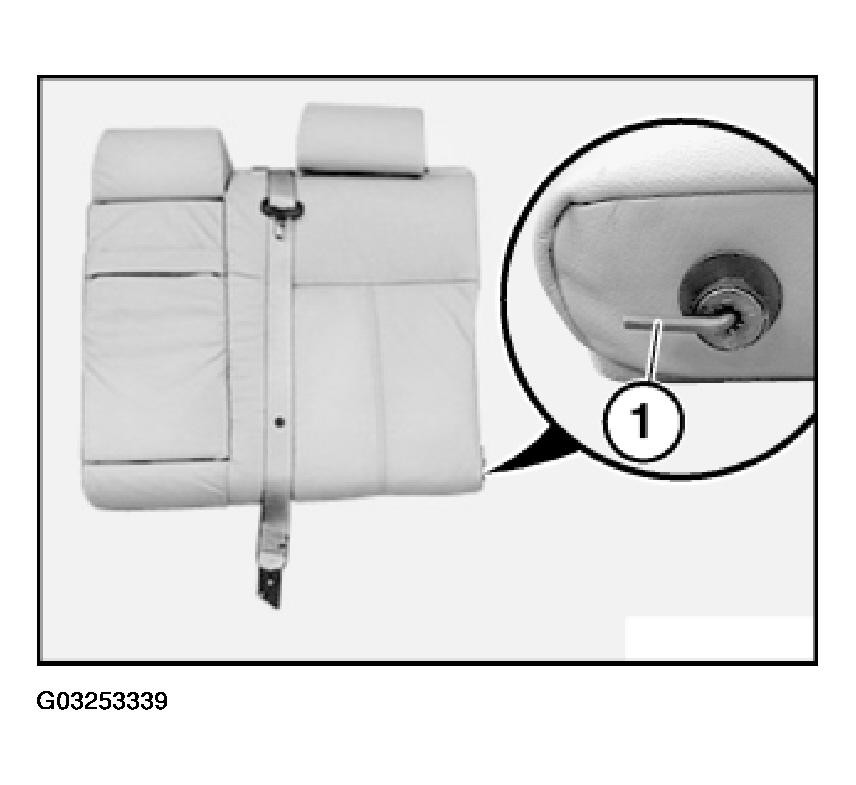

Fig 3: Identifying Rod
