52 26 390 Removing And Installing/Replacing Rear Head Restraints (Through-Loading System)

WARNING: This page is about a different variant/trim than selected.

Move head restraint up as far as possible.

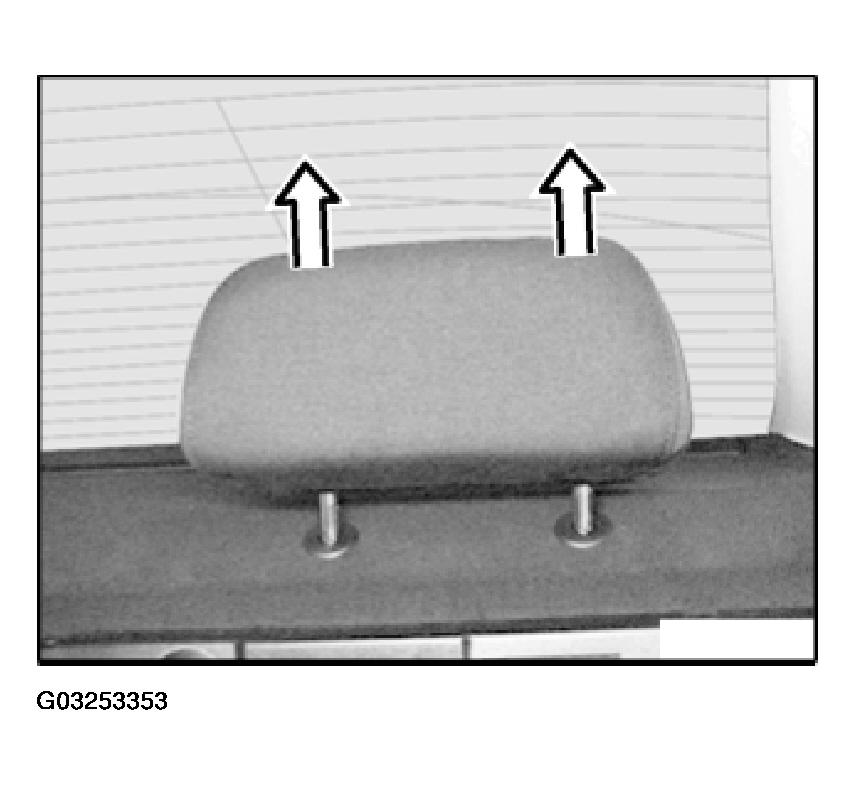

Fig 1: Removing Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.

Forcefully pull out head restraint or detach by hitting firmly on one side from below.

Pull out guide rods by twisting them back and forth.

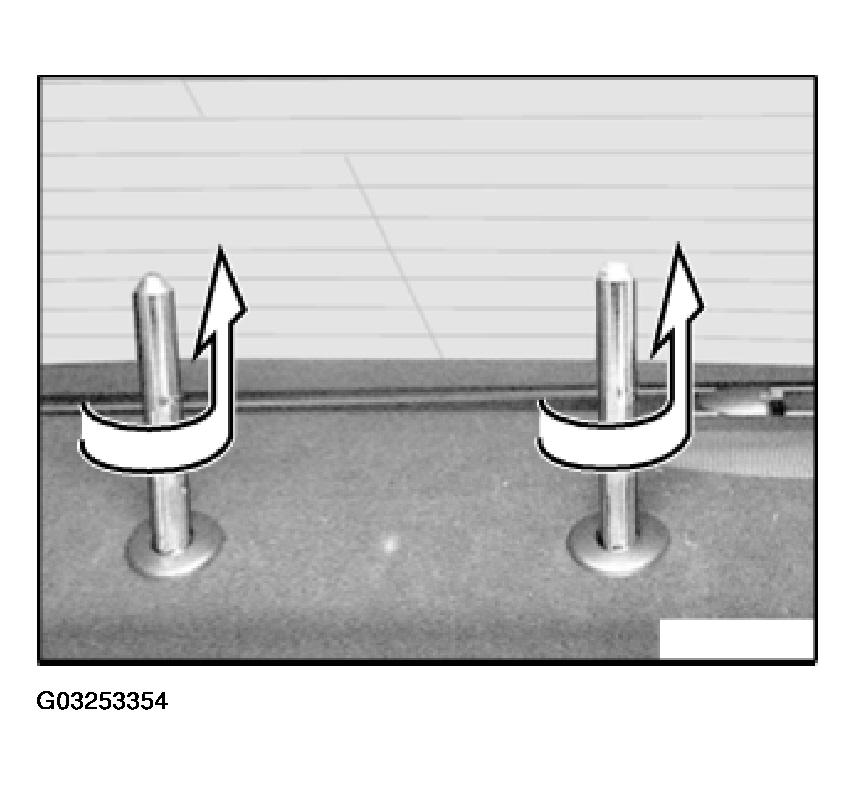

Fig 2: Pulling Out Guide Rods

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage rear window.

Installation:

Notches (1) on guide rods must point in direction of catch spring (2).

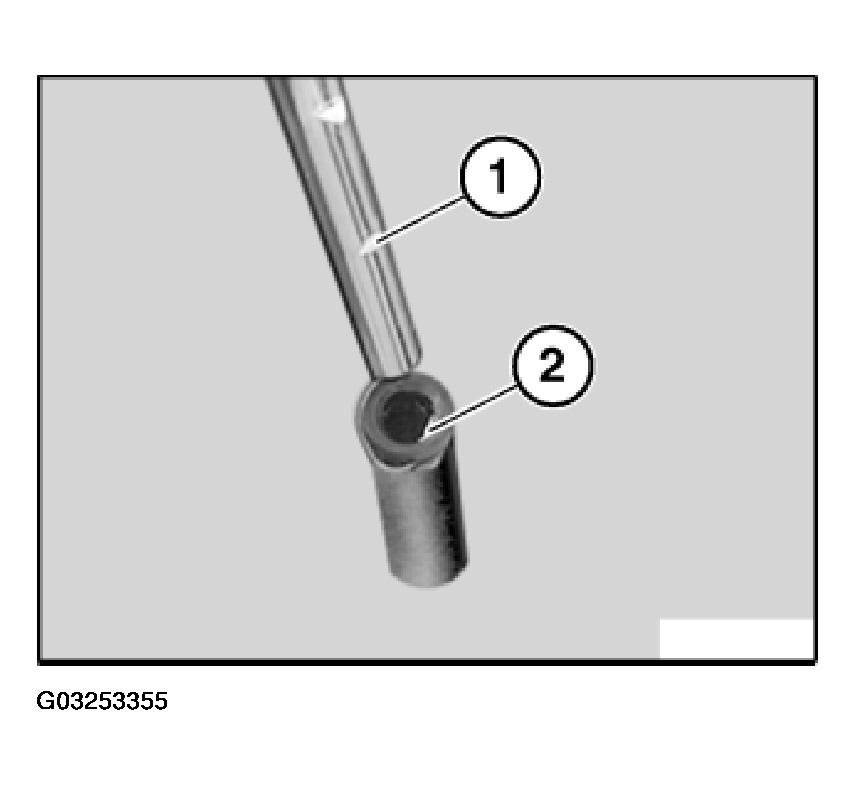

Fig 3: Identifying Notches On Guide Rods

Courtesy of BMW OF NORTH AMERICA, INC.
