52 26 030 Removing And Installing/Replacing Armrest For Rear-Seat Backrest (Through-Loading System)
WARNING: This page is about a different variant/trim than selected.
Fold armrest and detach leather or material cover at top.

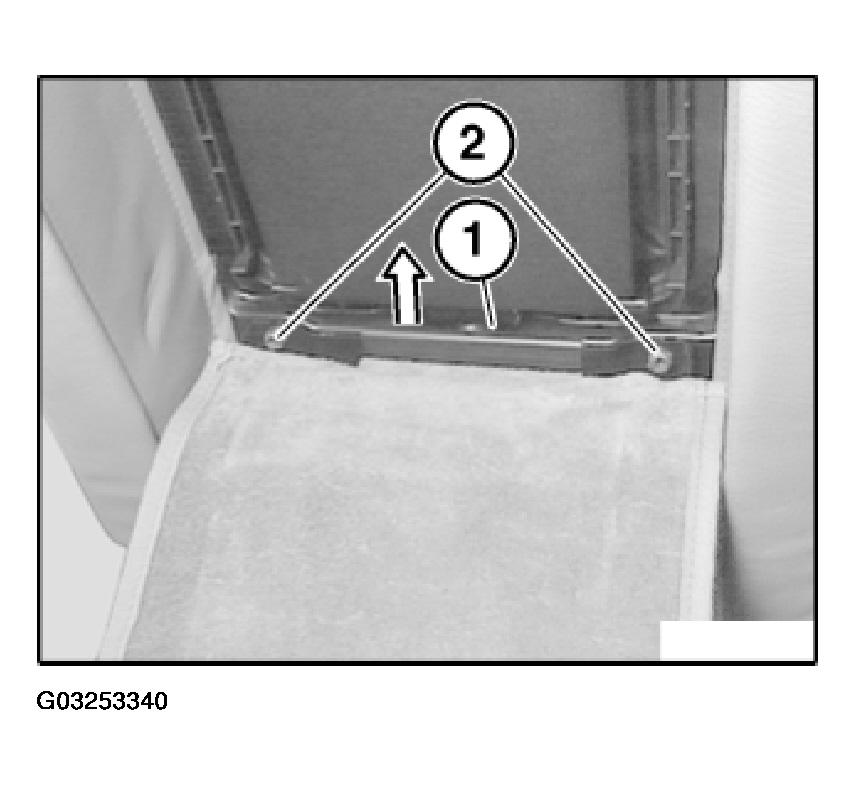

Detach piping (1) on cover towards top.
Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (2) and remove armrest towards front.
