Component Location Overview - Airbag System

The overview shows a LHD vehicle as an example.

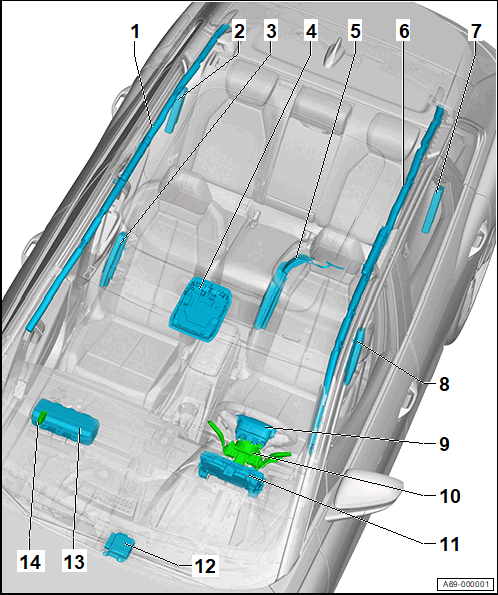

Fig 1: Identifying Airbag System Components

Courtesy of AUDI OF AMERICA, LLC

1. Front Passenger Head Curtain Airbag
   • LHD: with Front Passenger Head Curtain Airbag Igniter -N252-
   • RHD: with Driver Head Curtain Airbag Igniter -N251-
   • Refer to Overview - Head Curtain Airbag  .
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
2. Rear Thorax Airbag on Front Passenger Side
   • Installed depending on vehicle equipment
   • With Passenger Side Rear Thorax Airbag Igniter -N202-
   • Refer to Overview - Rear Thorax Airbag  .
3. Front Passenger Front Thorax Airbag
   • LHD: with Front Passenger Thorax Airbag Igniter -N200-
   • RHD: with Driver Thorax Airbag Igniter -N199-
   • Refer to Overview - Front Thorax Airbag, Inner Side  .
   • Refer to FRONT THORAX AIRBAG, OUTER SIDE, REMOVING AND INSTALLING  .
4. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Contained in Front Roof Module -WX3-
   • Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
5. Driver Side Front Inner Thorax Airbag with Driver Side Front Center Airbag Igniter for Occupant Contact Protection -N737-
   • Refer to Overview - Front Thorax Airbag, Inner Side  .
   • Refer to Inner Thorax Airbag, Removing and Installing  .
6. Driver Head Curtain Airbag
   • LHD: with Driver Head Curtain Airbag Igniter -N251-
   • RHD: with Front Passenger Head Curtain Airbag Igniter -N252-
   • Refer to Overview - Head Curtain Airbag  .
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
7. Rear Thorax Airbag on Driver Side
   • Installed depending on vehicle equipment
   • With Driver Side Rear Thorax Airbag Igniter -N201-
   • Refer to Overview - Rear Thorax Airbag  .
8. Front Thorax Airbag on Driver Side
   • LHD: with Driver Thorax Airbag Igniter -N199-
   • RHD: with Front Passenger Thorax Airbag Igniter -N200-
   • Refer to Overview - Front Thorax Airbag, Inner Side  .
   • Refer to FRONT THORAX AIRBAG, OUTER SIDE, REMOVING AND INSTALLING  .
9. Airbag Unit with Driver Airbag Igniter -N95-
   • Refer to OVERVIEW - DRIVER SIDE AIRBAG  .
   • Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING  .
10. Steering Column Electronics Control Module -J527-
    • Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
11. Instrument Cluster -KX2-
    • With Airbag Indicator Lamp -K75-
    • Refer to OVERVIEW - INSTRUMENT CLUSTER .
12. Airbag Control Module -J234-
    • Refer to Overview - Airbag Control Module  .
    • Refer to Airbag Control Module J234, Removing and Installing  .
13. Front Passenger Side Airbag Unit
    • With Front Passenger Airbag Igniter 1 -N131-
    • With Front Passenger Airbag Unit -NX3- including Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Igniter 2 -N132-
    • Refer to Overview - Front Passenger Airbag  .
    • Refer to Front Passenger Airbag Unit with Igniter, Removing and Installing  .
14. Front Passenger Airbag Deactivation Key Switch -E224-
    • Refer to the appropriate service information .
