Overview - Rear Thorax Airbag

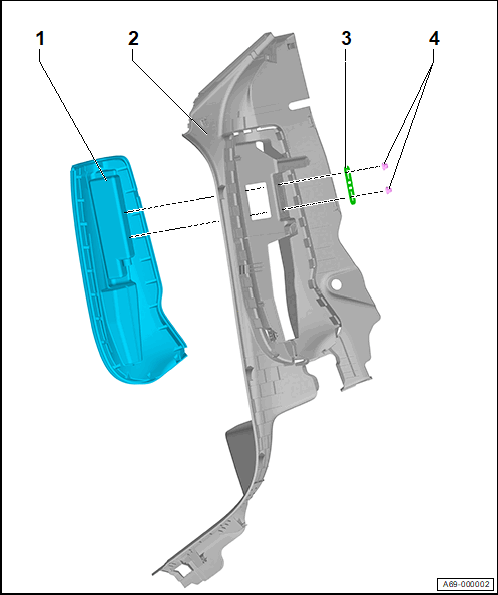

Fig 1: Exploded View Of Rear Thorax Airbag
GWWA69-000002Courtesy of AUDI OF AMERICA, LLC
  1. Rear Thorax Airbag
  2. Rear Sill Panel
  3. Metal Plate
    • Make sure that the metal plate is being installed
  4. Nut
    • Quantity: 2
    • 6 Nm +/-0.5
