Overview - Front Thorax Airbag, Inner Side

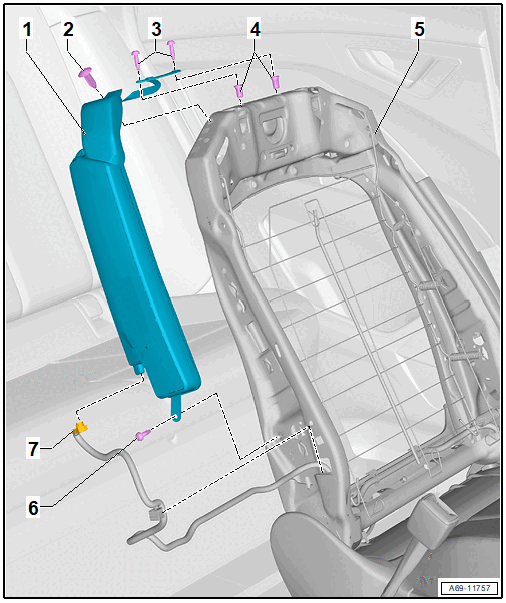

Fig 1: Exploded View Of Front Thorax Airbag, Inner Side

Courtesy of AUDI OF AMERICA, LLC

1. Interaction Airbag
   • With Driver Side Front Center Airbag Igniter for Occupant Contact Protection -N737-
   • Only installed on the driver side.
   • Refer to Inner Thorax Airbag, Removing and Installing  .
2. Clip
3. Bolt
   • Use liquid locking fluid
   • Quantity: 2
   • 8 Nm
4. Pop Rivet Nut
   • Quantity: 2
5. Front Seat Frame
6. Bolt
   • Always replace after removing
   • 8 Nm
7. Connector
