Overview - Head Curtain Airbag

The overview shows the right side of the vehicle as an example

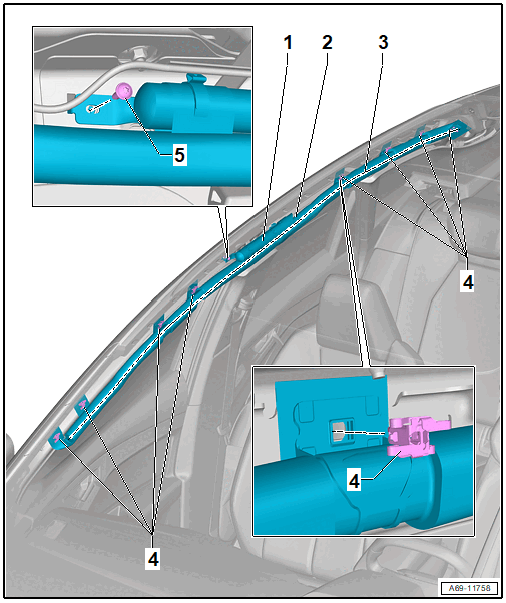

Fig 1: Identifying Head Curtain Airbag Components

Courtesy of AUDI OF AMERICA, LLC

1. Head Curtain Airbag
   • With Driver Head Curtain Airbag Igniter -N251- or Front Passenger Head Curtain Airbag Igniter -N252-
   • Refer to Head Curtain Airbag with Igniter, Removing and Installing  .
2. Connector
3. Anti-Rotation Protection Line
4. Clip
   • Quantity: 8
   • Always replace after removing
5. Bolt
   • Always replace after removing
   • 4.5 Nm
