Overview - Steering Column Switch Module

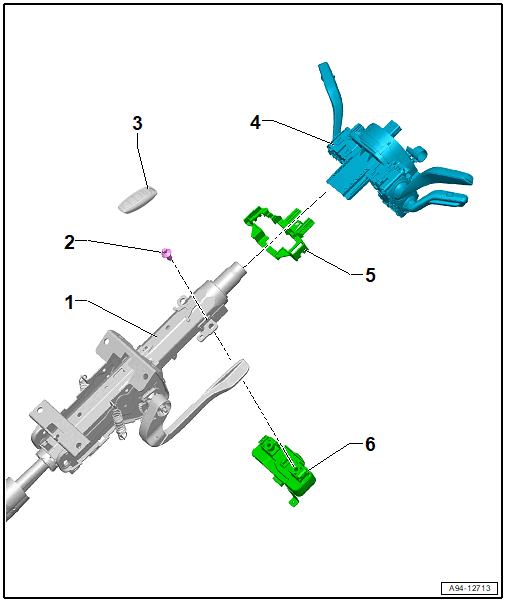

Fig 1: Exploded View Of Steering Column Switch Module

Courtesy of AUDI OF AMERICA, LLC

1. Steering Column
   • Refer to STEERING COLUMN, REMOVING AND INSTALLING .
2. Bolt
   • Shear bolt
   • Quantity: 2
3. Ignition Key
4. Steering Column Switch Module
   • with Steering Column Electronics Control Module -J527-
   • Components cannot be replaced separately. If one component is faulty, replace the steering column switch module
   • Refer to Steering Column Switch Module, Removing and Installing  .
5. Mount
   • Bolt (depending on the version)
   • Quantity: 1
   • 1.15 Nm
6. Electronic Steering Column Lock Control Module -J764-
   • Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764, REMOVING AND INSTALLING .
