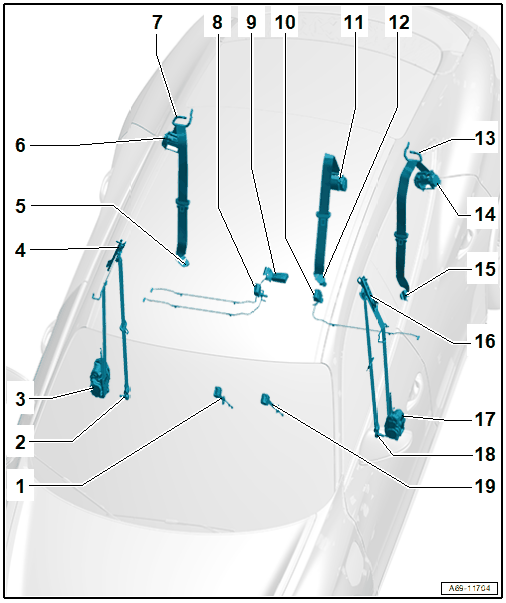

Component Location Overview - Seat Belts And Mounting Points

Courtesy of AUDI OF AMERICA, LLC

1. Right Front Seat Belt Latch
   • LHD: with Front Passenger Seat Belt Switch -E25-
   • RHD: with Driver Seat Belt Switch -E24-
   • Refer to Overview - Front Seat Belt Latch  .
2. Front Belt End Fitting
   • Refer to Overview - Front Three-Point Seat Belt  .
3. Right Front Seat Belt -NX11-
   • LHD: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Front Passenger Belt Force Limiter -G552- / Right Front Seat Belt Tensioner Control Module -J855-
   • RHD: with Driver Seat Belt Tensioner Igniter 1 -N153- /Driver Belt Force Limiter -G551- /Right Front Seat Belt Tensioner Control Module -J855-
   • Refer to Overview - Front Three-Point Seat Belt  .
4. Belt Height Adjuster/Front Seat Belt Guide
   • Refer to Overview - Front Three-Point Seat Belt  .
5. Right Rear Release Lever
   • Refer to Overview - Outer Rear Three-Point Seat Belt  .
6. Right Rear Seat Belt
   • LHD: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
   • RHD: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
   • Refer to Overview - Outer Rear Three-Point Seat Belt  .
7. Rear Seat Belt Relay
   • Refer to Overview - Outer Rear Three-Point Seat Belt  .
8. Right Second Row Seat Belt Switch
   • LHD: with Passenger Side Second Row Seat Belt Switch -F392-
   • RHD: with Driver Side Second Row Seat Belt Switch -F390-
   • Refer to Overview - Rear Seat Belt Latch  .
9. Center Second Row Seat Belt Switch -F391-
   • Refer to Overview - Rear Seat Belt Latch  .
10. Left Second Row Seat Belt Switch
    • LHD: with Driver Side Second Row Seat Belt Switch -F390-
    • RHD: with Passenger Side Second Row Seat Belt Switch -F392-
    • Refer to Overview - Rear Seat Belt Latch  .
11. Rear Seat Belt in the Center
    • Refer to Overview - Center Rear Three-Point Seat Belt  .
12. Center Rear Belt End Fitting
    • Refer to Overview - Outer Rear Three-Point Seat Belt  .
13. Rear Seat Belt Relay
    • Refer to Overview - Outer Rear Three-Point Seat Belt  .
14. Left Rear Seat Belt
    • LHD: with Driver Side Rear Seat Belt Tensioner Igniter -N196-
    • RHD: with Passenger Side Rear Seat Belt Tensioner Igniter -N197-
    • Refer to Overview - Outer Rear Three-Point Seat Belt  .
15. Left Rear Belt End Fitting
    • Refer to Overview - Outer Rear Three-Point Seat Belt  .
16. Belt Height Adjuster/Front Seat Belt Guide
    • Refer to Overview - Front Three-Point Seat Belt  .
17. Left Front Seat Belt -NX10-
    • LHD: with Driver Seat Belt Tensioner Igniter 1 -N153- /Driver Belt Force Limiter -G551- /Left Front Seat Belt Tensioner Control Module -J854-
    • RHD: with Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Front Passenger Belt Force Limiter -G552- / Left Front Seat Belt Tensioner Control Module -J854-.
    • Refer to Overview - Front Three-Point Seat Belt  .
18. Front Belt End Fitting
    • Refer to Overview - Front Three-Point Seat Belt  .
19. Left Front Seat Belt Latch
    • LHD: with Driver Seat Belt Switch -E24-
    • RHD: with Front Passenger Seat Belt Switch -E25-
    • Refer to Overview - Front Seat Belt Latch  .
