Overview - Front Three-Point Seat Belt

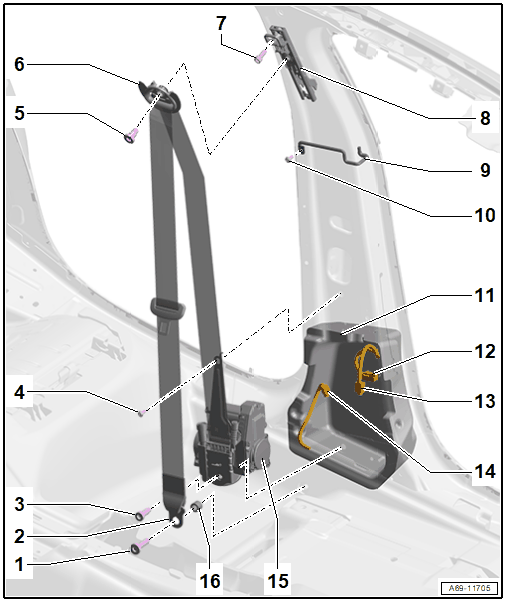

Fig 1: Exploded View Of Front Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Install by hand and tighten all the way
Belt End Fitting
- Refer to Front Seat Belt Guide, Removing and Installing .
Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Bolt
- 4.5 Nm
Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Seat Belt Relay
Bolt
- 27 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Seat Belt Height Adjuster
- Seat belt height adjuster must be replaced if the belt tensioner has deployed with the belt buckled
- Refer to Seat Belt Height Adjuster, Removing and Installing .
Seat Belt Guide
- Do not jam or damage the seat belt
- Refer to Front Seat Belt Guide, Removing and Installing .
Bolt
- 4.5 Nm
Insulation
- Insert in the B-pillar
Connector
- For the front seat belt tensioner control module
Connector
- For the front seat belt tensioner control module
Connector
- For the seat belt tensioner igniter 1
Front Seat Belt
- Refer to Front Three-Point Seat Belt, Removing and Installing .
Stop Sleeves
