Overview - Outer Rear Three-Point Seat Belt

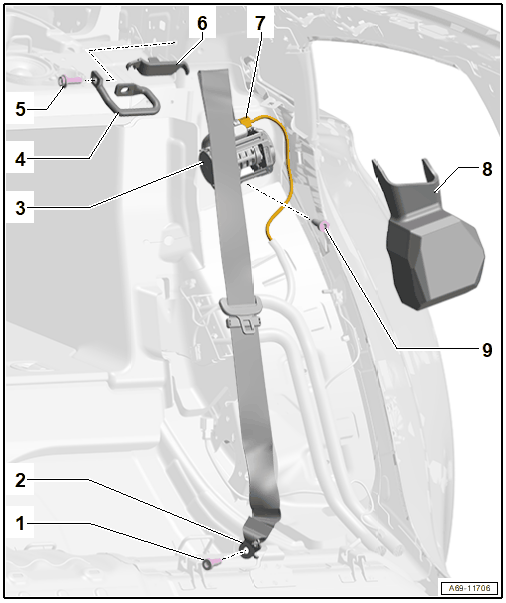

Fig 1: Exploded View Of Outer Rear Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • Install by hand and tighten all the way
2. Belt End Fitting
   • Refer to Outer Rear Belt End Fitting, Removing and Installing  .
3. Rear Seat Belt
   • Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING
4. Seat Belt Relay
   • Refer to OUTER REAR SEAT BELT RELAY, REMOVING AND INSTALLING
5. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
6. Seat Belt Guide
   • Clipped in on the seat belt relay
7. Connector
   • For the rear seat belt tensioner igniter
8. Insulation
9. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
