Overview - Rear Seat Belt Latch

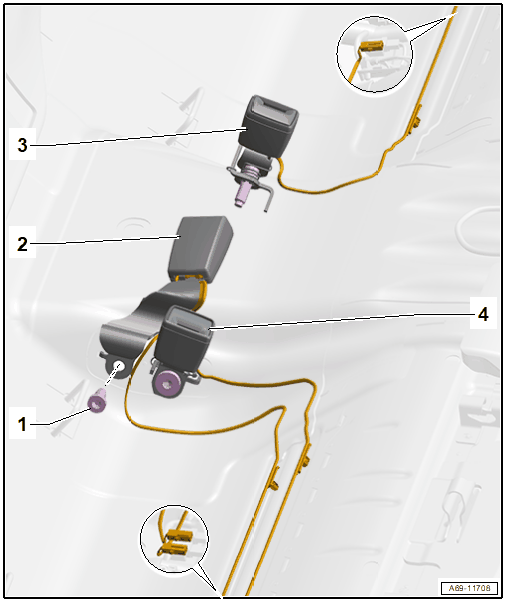

Fig 1: Exploded View Of Rear Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Install by hand and tighten all the way
Center Seat Belt Latch
- Always replace if the belt tensioner has deployed when the belt is buckled
- The anti-twist mechanism must engage into the recess
- Refer to Rear Seat Belt Latch, Removing and Installing .
Left Seat Belt Latch
- 40 Nm
- Always replace if the belt tensioner has deployed when the belt is buckled
- The anti-twist mechanism must engage into the recess
- Refer to Rear Seat Belt Latch, Removing and Installing .
Right Seat Belt Latch
- 40 Nm
- Always replace if the belt tensioner has deployed when the belt is buckled
- The anti-twist mechanism must engage into the recess
- Refer to Rear Seat Belt Latch, Removing and Installing .
