Overview - Center Rear Three-Point Seat Belt

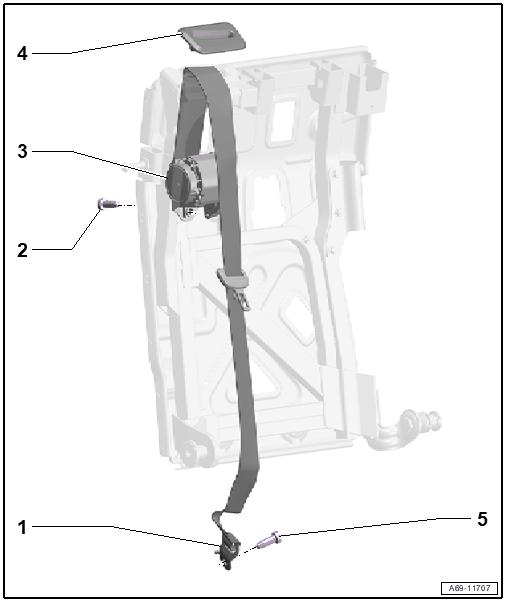

Fig 1: Exploded View Of Center Rear Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

1. Belt End Fitting
   • Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING
2. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
3. Rear Seat Belt in the Center
   • Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING
4. Seat Belt Guide
   • Refer to REAR SEAT BELT GUIDE IN CENTER SEATING POSITION, REMOVING AND INSTALLING
5. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • Install by hand and tighten all the way
