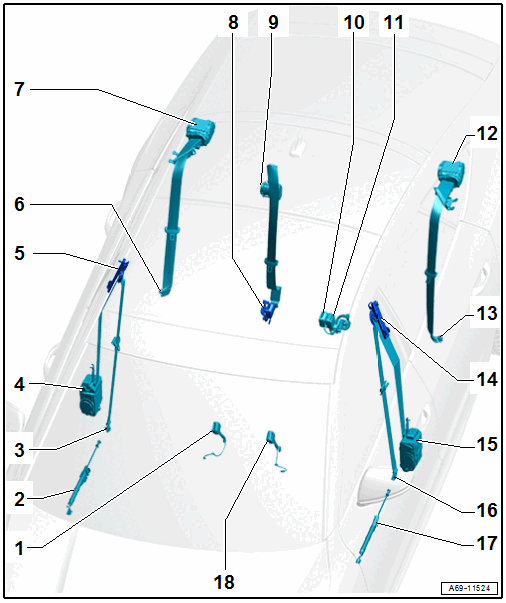

Component Location Overview - Seat Belts And Mounting Points
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Front Seat Belt Latch
- With Front Passenger Seat Belt Switch -E25-
- Refer to Overview - Front Seat Belt Latch .
- Front Passenger Seat Belt Tensioner Igniter 2 -N298-
- Only USA and Canada market
- Refer to OVERVIEW - FRONT SEAT BELT TENSIONER, NORTH AMERICA MARKET VERSIONS
- Front Belt End Fitting
- Refer to Overview - Front Three-Point Seat Belt .
- Right Front Seat Belt -NX11-
- RHD: With Front Passenger Seat Belt Tensioner Igniter 1 -N154-, Front Passenger Belt Force Limiter -G552- / Right Front Seat Belt Tensioner Control Module -J855-
- Refer to Overview - Front Three-Point Seat Belt .
- Belt Height Adjuster/Front Seat Belt Guide
- Refer to Overview - Front Three-Point Seat Belt .
- Right Rear Release Lever
- Refer to Overview - Outer Rear Three-Point Seat Belt .
- Right Rear Seat Belt
- With Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Equipped on some models: Right Rear Seat Belt Tensioner Control Module -J1098-
- Refer to Overview - Outer Rear Three-Point Seat Belt .
- Passenger Side Second Row Seat Belt -FX6-
- With Passenger Side Second Row Seat Belt Switch -F392-
- Passenger Side Rear Seat Belt Latch Lamp -L370- equipment version
- Refer to Overview - Rear Seat Belt Latch .
- Rear Seat Belt in the Center
- Equipment version 2+1 divided seats
- Refer to Overview - Center Rear Three-Point Seat Belt .
- Dual Seat Belt Latch -FX4-, center of second row
- With Center Second Row Seat Belt Switch -F391-
- Equipped on some models: Center Rear Seat Belt Latch Lamp -L371-
- Equipment version 2+1 divided seats
- Refer to Overview - Rear Seat Belt Latch .
- Dual Seat Belt Latch -FX4-, second row on driver side
- With Driver Side Second Row Seat Belt Switch -F390-
- Rear Driver Side Seat Belt Latch Lamp -L369- equipment version
- Refer to Overview - Rear Seat Belt Latch .
- Left Rear Seat Belt
- with Driver Side Rear Seat Belt Tensioner Igniter -N196-
- Equipped on some models Left Rear Seat Belt Tensioner Control Module -J1097-
- Refer to Overview - Outer Rear Three-Point Seat Belt .
- Rear Belt End Fitting
- Refer to Overview - Outer Rear Three-Point Seat Belt .
- Belt Height Adjuster/Front Seat Belt Guide
- Refer to Overview - Front Three-Point Seat Belt .
- Left Front Seat Belt -NX10-
- LHD: With Driver Seat Belt Tensioner Igniter 1 -N153- /Driver Belt Force Limiter -G551- /Left Front Seat Belt Tensioner Control Module -J854-
- Refer to Overview - Front Three-Point Seat Belt .
- Front Belt End Fitting
- Refer to Overview - Front Three-Point Seat Belt .
- Driver Seat Belt Tensioner Igniter 2 -N297-
- Only USA and Canada market
- Refer to OVERVIEW - FRONT SEAT BELT TENSIONER, NORTH AMERICA MARKET VERSIONS
- Front Seat Belt Latch
- With Driver Seat Belt Switch -E24-
- Refer to Overview - Front Seat Belt Latch .
