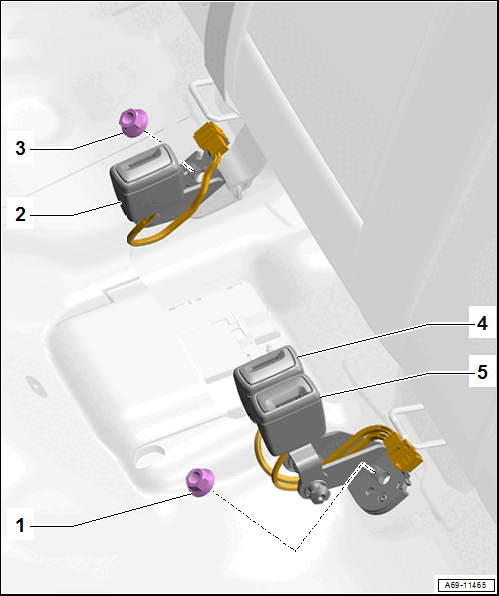

Overview - Rear Seat Belt Latch
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Right Seat Belt Latch
- With Passenger Side Second Row Seat Belt Switch -F392-
- Passenger Side Rear Seat Belt Latch Lamp -L370- equipment version
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when installing, it must engage in the anti-twist mechanism
- Refer to Rear Seat Belt Latch, Removing and Installing .
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Center Seat Belt Latch
- With Center Second Row Seat Belt Switch -F391-
- Equipped on some models: Center Rear Seat Belt Latch Lamp -L371-
- For equipment version 2+1 divided seats
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when installing, it must engage in the anti-twist mechanism
- Refer to Rear Seat Belt Latch, Removing and Installing .
- Left Seat Belt Latch
- With Driver Side Second Row Seat Belt Switch -F390-
- Rear Driver Side Seat Belt Latch Lamp -L369- equipment version
- Always replace if the belt tensioner has deployed when the belt is buckled
- Align with the direction of travel when installing, it must engage in the anti-twist mechanism
- Refer to Rear Seat Belt Latch, Removing and Installing .
