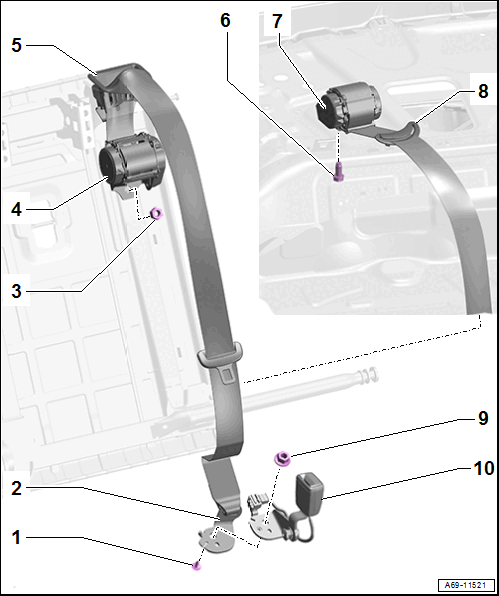

Overview - Center Rear Three-Point Seat Belt
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Center Belt End Fitting
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Center Seat Belt
- Installed depending on vehicle equipment
- Refer to Rear Three-Point Seat Belt, Removing and Installing .
- Seat Belt Guide
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Rear Shelf Seat Belt
- Installed depending on vehicle equipment
- Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Seat Belt Guide
- Installed depending on vehicle equipment
- Press in until it clicks into place in the rear shelf
- Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Nut
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Rear Seat Belt Latch
