Overview - Front Seat Belt TENSIONER, North AMERICA Market Versions

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

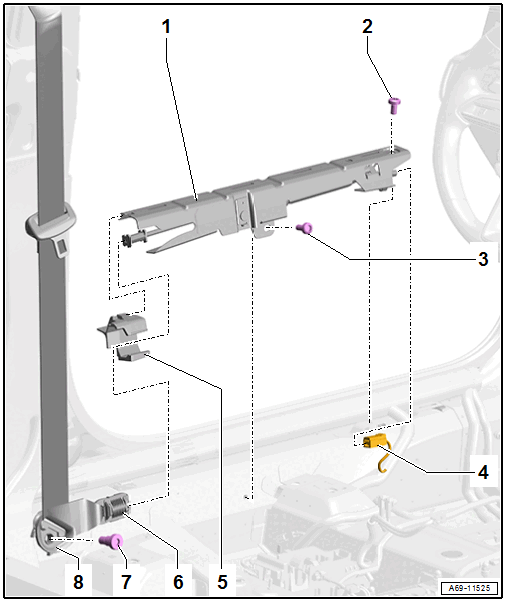

Fig 1: Exploded View Of Front Seat Belt Tensioner, North America Market Versions

Courtesy of AUDI OF AMERICA, LLC

Seat Belt Tensioner 2
- With Driver Seat Belt Tensioner Igniter 2 -N297- /Front Passenger Seat Belt Tensioner Igniter 2 - N298-
- Refer to FRONT BELT TENSIONER, REMOVING AND INSTALLING, NORTH AMERICAN MARKET-SPECIFIC VERSION
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 20 Nm
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 20 Nm
Connector
Bracket
- For belt end fitting/coupling
Belt End Fitting with Coupling
- for belt tensioner
- Refer to Front Seat Belt Guide, Removing and Installing .
Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 35 Nm
Lower Seat Belt Relay
- Refer to Front Seat Belt Guide, Removing and Installing .
