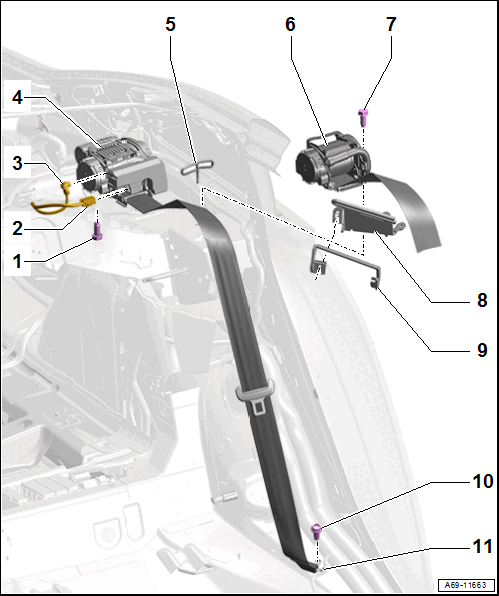

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Connector
- Installed depending on vehicle equipment
- Left Rear Seat Belt Tensioner Control Module -J1097- / Right Rear Seat Belt Tensioner Control Module -J1098-
- Connector
- Driver Side Rear Seat Belt Tensioner Igniter -N196- / Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Rear Seat Belt
- Vehicles with an electric seat belt tensioner
- with Driver Side Rear Seat Belt Tensioner Igniter -N196-, Passenger Side Rear Seat Belt Tensioner Igniter -N197-, Left Rear Seat Belt Tensioner Control Module -J1097-, Right Rear Seat Belt Tensioner Control Module -J1098-
- The Left Rear Seat Belt Tensioner Control Module -J1097- / Right Rear Seat Belt Tensioner Control Module -J1098- must be adapted after replacing the safety belt using the => Vehicle Diagnostic Tester .
- Refer to Rear Three-Point Seat Belt, Removing and Installing .
- Seat Belt Guide
- Depending on vehicle equipment. Refer to Rear Seat Belt Guide, Removing and Installing .
- Rear Seat Belt
- Vehicles without an electric seat belt tensioner.
- With Driver Side Rear Seat Belt Tensioner Igniter -N196- /Passenger Side Rear Seat Belt Tensioner Igniter -N197-
- Refer to Rear Three-Point Seat Belt, Removing and Installing .
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Seat Belt Guide
- Cover for Seat Belt Guide
- Only equipment/market-specific version China
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Depending on vehicle equipment: secured with lock washer on the belt end fitting
- 40 Nm
- Belt End Fitting
