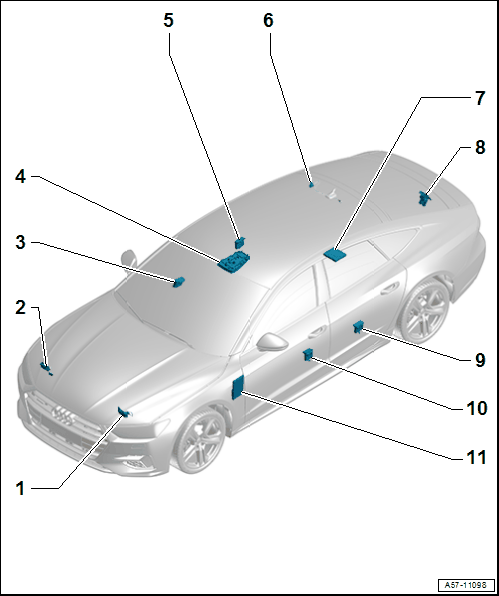

Component Location Overview - Central Locking
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Hood Contact Switch -F266-
- In the latch
- Removing and Installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING .
- Hood Contact Switch 2 -F329-
- In the latch
- Removing and Installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING .
- Front Passenger Door Control Module -J387-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Passenger Side Rear Door Control Module -J927-
- Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Rear Latch
- With the Rear Lid Central Locking System Motor -V53- / Rear Lid Alarm Switch -F123- ; cannot be replaced separately.
- Overview. Refer to OVERVIEW - REAR LID, A7 SPORTBACK .
- Driver Side Rear Door Control Module -J926-
- Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
