Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

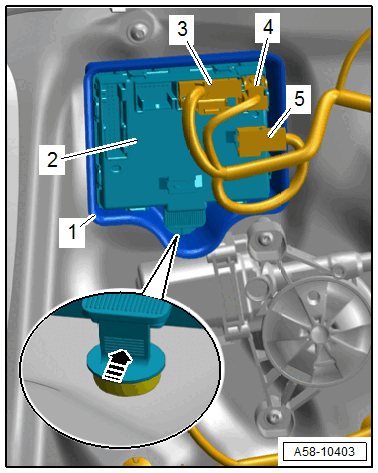

-- Disconnect the connector -3- by pulling the retainer and pressing the release down.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -4-.

-- Free up the connector -5- on the door control module.

-- Press the catch in the direction of the -arrow- and disengage the door control module -2- from the door body.

-- Remove the rubber boot -1- from the door control module.

Installing

Install in reverse order of removal and note the following:

If the Left Rear Door Control Module -J388- or the Right Rear Door Control Module -J389- is being replaced, select the "Replace control module" function for the respective control module using the Vehicle Diagnostic Tester, Diagnostics .
