Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

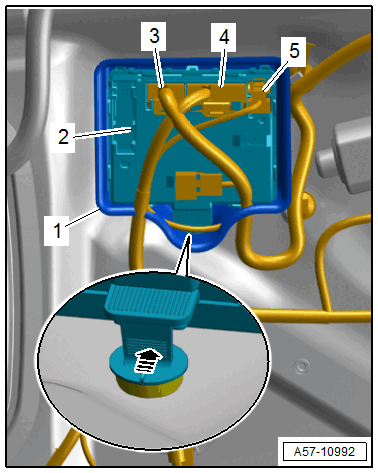

-- Pull the retainer and push the release downward to disconnect the connectors -3 and 4-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -5-.

-- Press the catch in the direction of the -arrow- and disengage the door control module -2- from the door body.

-- Remove the rubber boot -1- from the door control module.

Installing

Install in reverse order of removal and note the following:

If the Driver Door Control Module -J386- or the Front Passenger Door Control Module -J387- is being replaced, select the "Replace control module" function of the respective control module using the Vehicle Diagnostic Tester, Diagnostics .
