Comfort System Central Control Module -J393-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the rear panel sill frame. Refer to REAR PANEL SILL FRAME, REMOVING AND INSTALLING .

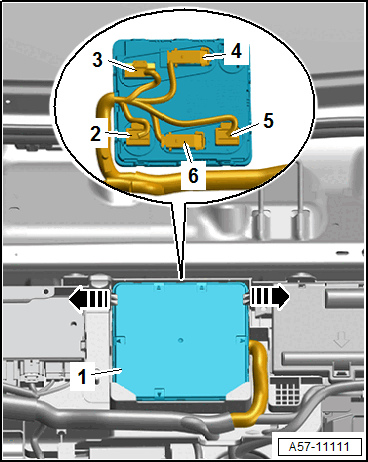

-- Release the retainers -arrows- and guide the central control module -1- out of the mount.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2 through 6-.

Installing

Install in reverse order of removal and note the following:

If the Comfort System Central Control Module -J393- is being replaced, select the "Replace control module" function for the respective control module on the Vehicle Diagnostic Tester, Diagnostics .
