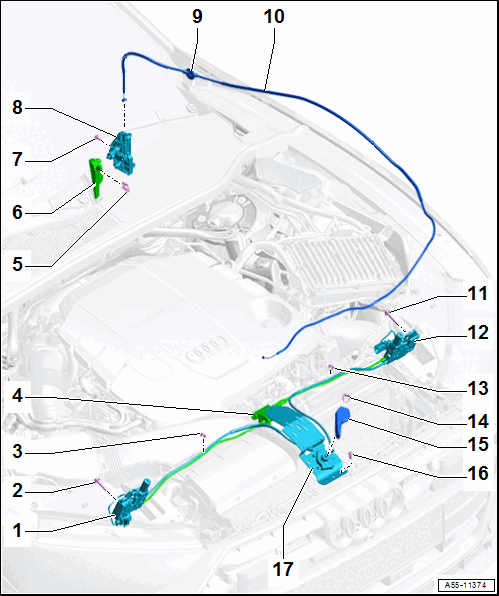

Overview - Release Cable

Courtesy of AUDI OF AMERICA, LLC

Latch
- Right
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
Bolt
- 11 Nm
- Quantity: 2
Clip
- To fasten the release cable
Coupling with Release Cables
- For the latches
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Clip
- For the release lever
Operating Lever
- For the latch
- Removing and Installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 3
Mounting Bracket
- For latch release lever
- Removing and Installing. Refer to LATCH RELEASE LEVER MOUNTING BRACKET, REMOVING AND INSTALLING .
Grommet
- Check for proper seating
- If damaged, replace the release cable for the latch operating lever. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Release Cable
- For latch release lever
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING .
Bolt
- 11 Nm
- Quantity: 2
Latch
- Left
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
Clip
- To fasten the release cable
Clip
- For the hook release lever
Hook Release Lever
- Removing and Installing. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Mounting Bracket with Release Cable
- Removing and Installing. Refer to MOUNTING BRACKET WITH HOOK RELEASE LEVER RELEASE CABLE, REMOVING AND INSTALLING .
