Latch Release Lever Mounting Bracket, Removing And Installing

Removing

-- Remove the latch release lever. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Loosen the release cable -3- from the mounting bracket support bracket -2- and disengage the release cable nipple -1-.

Courtesy of AUDI OF AMERICA, LLC

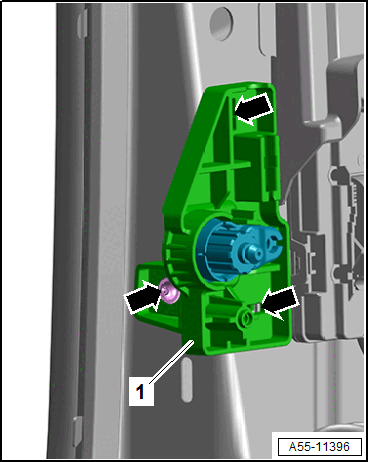

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mounting bracket -1-.

Installing

Install in reverse order of removal.

Tightening Specifications
