Latch Release Cable, Removing And Installing

Removing

-- Remove the vehicle electrical system control module bracket. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

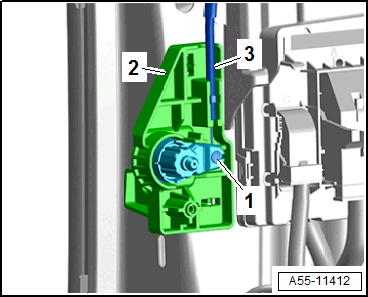

-- Loosen the release cable -3- from the mounting bracket support bracket -2- and disengage the release cable nipple -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the housing cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple -2-.

-- Free up the release cable on the lock carrier.

-- Remove the grommet and remove the release cable outward.

Installing

Install in reverse order of removal and note the following:

-- Engage the release cable nipple -3- into the coupling roller -2- and push the release cable into the support bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Position the housing cover -1- so that the printed "line" points toward the free coupling connection.

-- To release the latches evenly, adjust the release cable at the thumbwheel.

Removing

-- Remove the latch. Refer to LATCH, REMOVING AND INSTALLING .

-- Release the retainers -arrows- and remove the housing cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple -2-.

-- Release the catches and remove the coupling from the lock carrier.

-- Free up the release cables and guide them out of the lock carrier.

Installing

Install in reverse order of removal and note the following:

-- Engage the release cable nipple -3- into the coupling roller -2- and push the release cable into the support bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Position the housing cover -1- so that the printed "line" points toward the free coupling connection.

-- To release the latches evenly, adjust the release cable at the thumbwheel.
