Mounting Bracket With Hook Release Lever Release Cable, Removing And Installing
Removing
-- Remove the latch and free up the release cable to the operating lever hook on the latch. Refer to LATCH, REMOVING AND INSTALLING .
-- Free up the connectors and wiring harness on the mounting bracket.

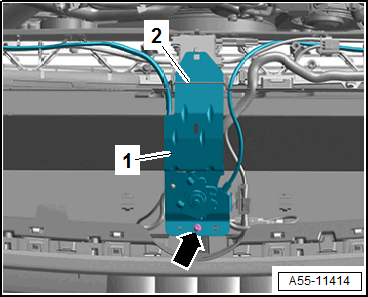

-- Remove the bolt -arrow-.
-- Pull the mounting bracket -1- forward out of the guide -2- and remove.
Installing
Install in reverse order of removal.
Tightening Specifications
- Refer to OVERVIEW - RELEASE CABLE
