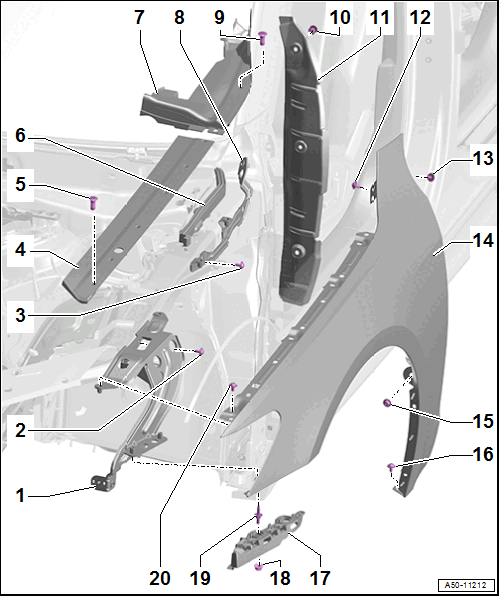

Overview - Fender
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Front Cover for Fender
- Removing and Installing. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING .
- Bolt
- For expanding clip
- A6: quantity: 5
- A7 Sportback: quantity: 6
- Seal
- Rear Cover for Fender
- Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
- Bracket
- For the fender
- Bolt
- For expanding clip
- A6: quantity: 2
- Expanding Rivet
- Quantity: 3
- End Panel
- Removing and Installing. Refer to END PLATE, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- A7 Sportback only
- Bolt
- 8 Nm
- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 2
- Mount
- For the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER .
- Nut
- Quantity: 2
- Tightening specification OVERVIEW - BUMPER COVER
- Double Bolt
- 10 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 4
