Fender Brace, Removing And Installing

Removing

-- Remove the fender. Refer to FENDER, REMOVING AND INSTALLING .

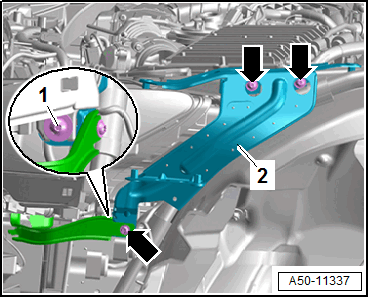

-- Remove the bolts -arrows- and loosen the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fender brace -2-.

Installing

Install in reverse order of removal.

Tightening Specifications

• Refer to OVERVIEW - FENDER
