Fender, Removing And Installing

Removing

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- If required, remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

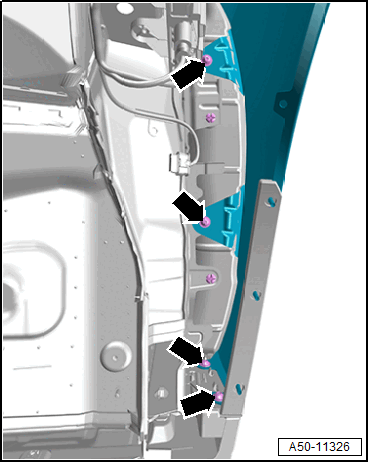

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front fender cover. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING .

-- Remove the rear cover for the fender. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .

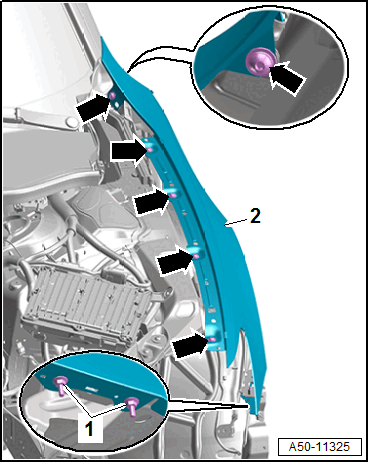

-- A6: Remove the bolts -arrows- and the double bolts -1-, and remove the fender -2-.

Courtesy of AUDI OF AMERICA, LLC

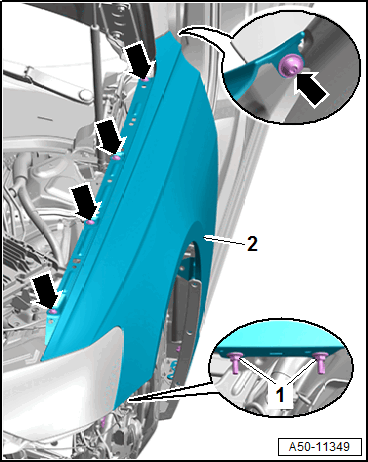

-- A7 Sportback: Remove the bolts -arrows- and the double bolts -1-, and remove the fender -2-.

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal.

Tightening Specifications
