Fender Front Cover, Removing And Installing

Removing

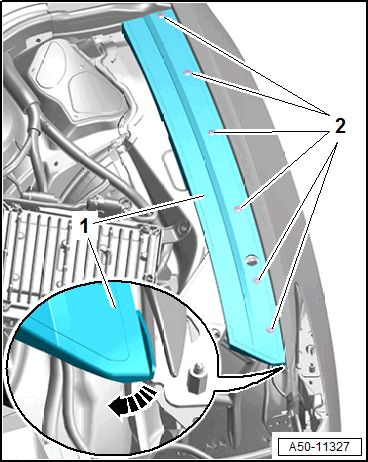

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

• A6: quantity: 5
• A7 Sportback: quantity: 6

TIP:

The expanding clip integrated in the cover will release while the bolts are being removed.

-- Remove the cover -1- upward and disengage at the fender -arrow-.

Installing

Install in reverse order of removal.
