Rear Fender Cover, Removing And Installing
Special tools and workshop equipment required
- Pry Lever:80-200
Removing

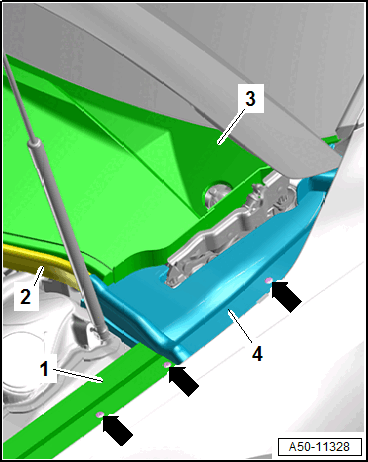

-- Remove the seal -2- at the plenum chamber bulkhead.
-- Remove the bolts -arrows-.
- A6: quantity: 2
- A7 Sportback: quantity: 1
TIP:
The expanding clip integrated in the cover will release while the bolts are being removed.
-- Lift up the front cover -1- and plenum chamber cover -3- slightly.
-- Remove the rear cover -4- upward.
Installing
Install in reverse order of removal.
