Component Location Overview - Seat Belts And Mounting Points, A5 Coupe

WARNING: This page is about a different variant/trim than selected.

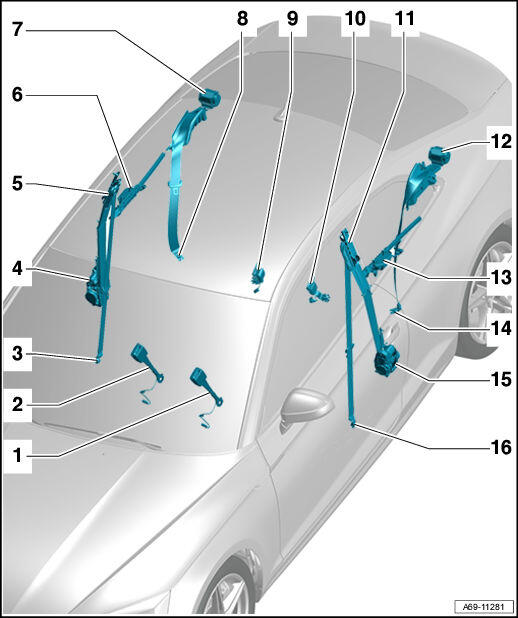

GWWA69-11281Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat Belt Latch
  2. Front Seat Belt Latch
  3. Front Belt End Fitting
  4. Automatic Belt Retractor
    • For the front three-point seat belt
    • With:
      • Front Passenger Seat Belt Tensioner Igniter 1 -N154-
      • Front Passenger Belt Force Limiter -G552-
      • Equipment versions with electric seat belt tensioner: Right Front Seat Belt Tensioner Control Module -J855-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 COUPE .
  5. Belt Height Adjuster/Front Seat Belt Guide
  6. Front Passenger Seat Belt Positioning Motor -V605-
  7. Automatic Belt Retractor
  8. Rear Belt End Fitting
  9. Rear Seat Belt Latch
  10. Rear Seat Belt Latch
  11. Belt Height Adjuster/Front Seat Belt Guide
  12. Automatic Belt Retractor
  13. Driver Seat Belt Positioning Motor -V604-
  14. Rear Belt End Fitting
  15. Automatic Belt Retractor
    • For the front three-point seat belt
    • With:
      • Driver Seat Belt Tensioner Igniter 1 -N153-
      • Driver Belt Force Limiter -G551-
      • Equipment version with electric seat belt tensioner: Left Front Seat Belt Tensioner Control Module -J854-
    • Overview. Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT, A5 COUPE .
  16. Front Belt End Fitting
