Overview - Front Three-Point Seat Belt, A5 Coupe

WARNING: This page is about a different variant/trim than selected.

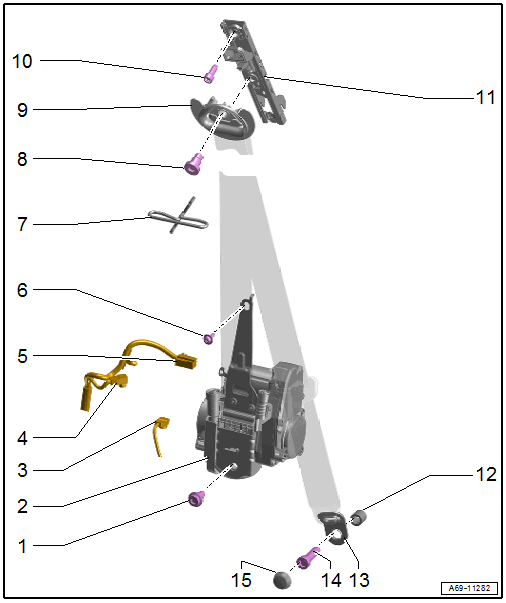

Fig 1: Exploded View Of Front Three-Point Seat Belt, A5 Coupe
GWWA69-11282Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  2. Automatic Belt Retractor with Electric Belt Tensioner
  3. Connector
    • For the seat belt force limiter
  4. Connector
    • For the seat belt tensioner igniter 1
  5. Connector
    • For the front seat belt tensioner control module
  6. Bolt
    • 4 Nm
  7. Front Seat Belt Guide
  8. Bolt
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  9. Seat Belt Guide
  10. Bolt
    • 27 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  11. Seat Belt Height Adjuster
  12. Stop Sleeves
  13. Belt End Fitting
  14. Bolt
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  15. Cap
