Overview - Rear Seat Belt Latch, 2-Person Bench Seat

WARNING: This page is about a different variant/trim than selected.

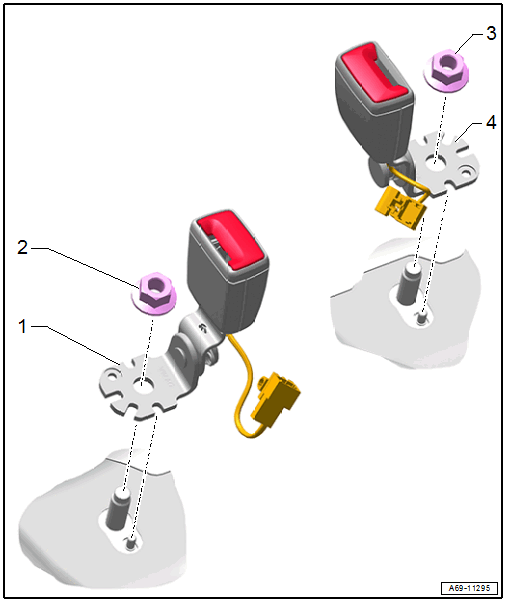

Fig 1: Exploded View Of Rear Seat Belt Latch, 2-Person Bench Seat
GWWA69-11295Courtesy of AUDI OF AMERICA, LLC
  1. Right Seat Belt Latch
    • Always replace if the belt tensioner has deployed when the belt is buckled
    • Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, 2-PERSON REAR SEAT .
    • Align with the direction of travel when bolting it on
    • The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
  2. Nut
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  3. Nut
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  4. Left Seat Belt Latch
    • Always replace if the belt tensioner has deployed when the belt is buckled
    • Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, 2-PERSON REAR SEAT .
    • Align with the direction of travel when bolting it on
    • The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
