Overview - Outer Rear Three-Point Seat Belt, A5 Coupe/SPORTBACK

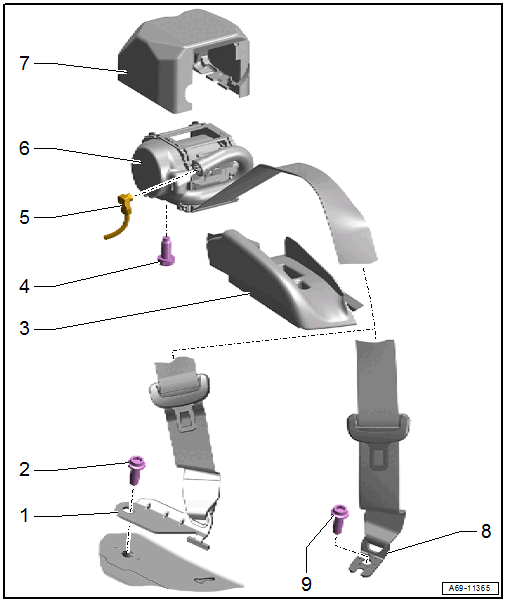

Fig 1: Exploded View Of Outer Rear Three-Point Seat Belt, A5 Coupe/Sportback

Courtesy of AUDI OF AMERICA, LLC

1. Belt End Fitting
   • A5 Sportback
   • Removing and Installing. Refer to OUTER REAR BELT END FITTING, REMOVING AND INSTALLING, A5 SPORTBACK .
2. Bolt
   • 45 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
3. Belt Guide
   • Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
   • Insert in the guides on the bracket with the bolt heads and pull forward until the catches engage audibly
4. Bolt
   • 45 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
5. Connector
6. Automatic Belt Retractor
   • Removing and Installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
7. Noise Insulation
   • For the automatic belt retractor
8. Belt End Fitting
   • A5 Coup e
   • Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING, A5 COUPE .
9. Bolt
   • 45 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
