Left Engine Mount, Removing And Installing: Removing

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the left front section of the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the ribbed belt from the A/C compressor belt pulley. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the lower left longitudinal member. Refer to OVERVIEW - LOCK CARRIER .

-- Remove the A/C compressor from the bracket and tie it up toward the front. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .

-- Remove and disconnect the connector -3- for the electrohydraulic engine mount solenoid valve from the bracket.

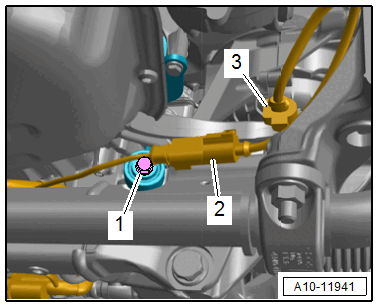

Fig 1: Engine Mount Component Location/Engine Mount Actuator

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connector -2- from the bracket, and release and disconnect it:

-- Free up the wire.

-- Remove the bolts -arrows- for the engine mount -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the engine using the : 10-222A/11  -1- on the correct side to dimension -a-.

Fig 2: Identifying Engine Support Bridge - Spindle 10 - 222 A /11

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = approximately 20 mm.

-- Remove the engine mount.
