Engine, Supporting In Installation Position
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Support Bridge: 10-222 A
- Engine Support - Supplement Kit: T40093A
Procedure
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the left and right covers for the fender. Refer to OVERVIEW - FENDER .

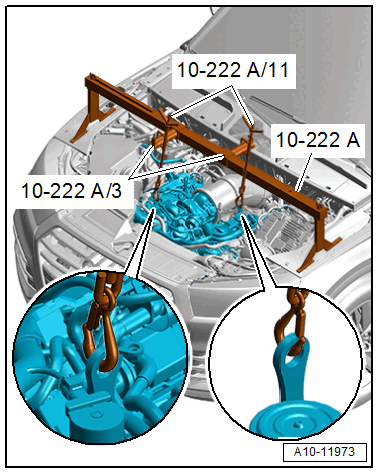

-- Position the : 10-222A at the left and right side on the longitudinal member.
-- Engage the : 10-222A/11 at the left and right on the engine lifting eyes.
-- Tension the engine with the spindles slightly until the engine mount is not under a load.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
