Overview - Noise Insulation

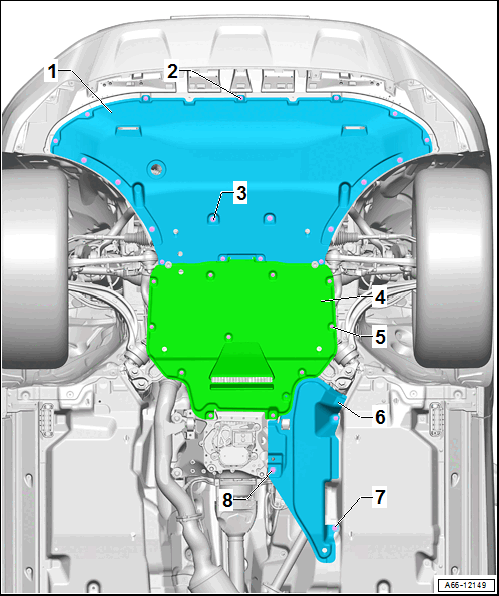

GWWA66-12149Courtesy of AUDI OF AMERICA, LLC
  1. Noise Insulation
    • Front
  2. Screw
    • 3 Nm
    • Quantity 17
  3. Bolt
    • 6 Nm
    • Quantity: 2
  4. Noise Insulation
    • Rear
  5. Screw
    • 3 Nm
    • Quantity: 12
  6. Noise Insulation
    • Left
  7. Nut
    • 2.5 Nm
    • Quantity: 2
  8. Expanding Rivet
