Overview - Front Wheel Housing Liner

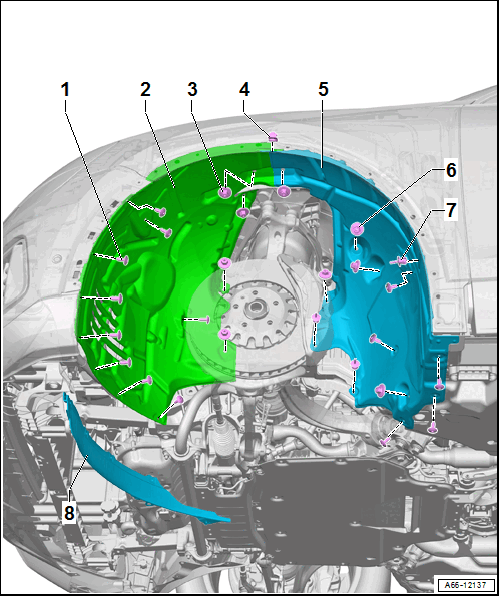

Fig 1: Exploded View Of Front Wheel Housing Liner
GWWA66-12137Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2.5 Nm
    • Quantity: 14
  2. Wheel Housing Liner
    • Front, front section
  3. Nut
    • 2.5 Nm
    • Quantity: 4
  4. Bracket
    • For the wheel housing liner to the fender
  5. Wheel Housing Liner
    • Front, rear section
  6. Nut
    • 2.5 Nm
    • Quantity: 5
  7. Expanding Rivet
    • Quantity: 3
  8. Wheel Spoiler
    • Front
